BRZ Premium, Automatic Trans
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Intake System / Exhaust System
›
Intake system (FA20)
›
Circuit figure
Circuit figure

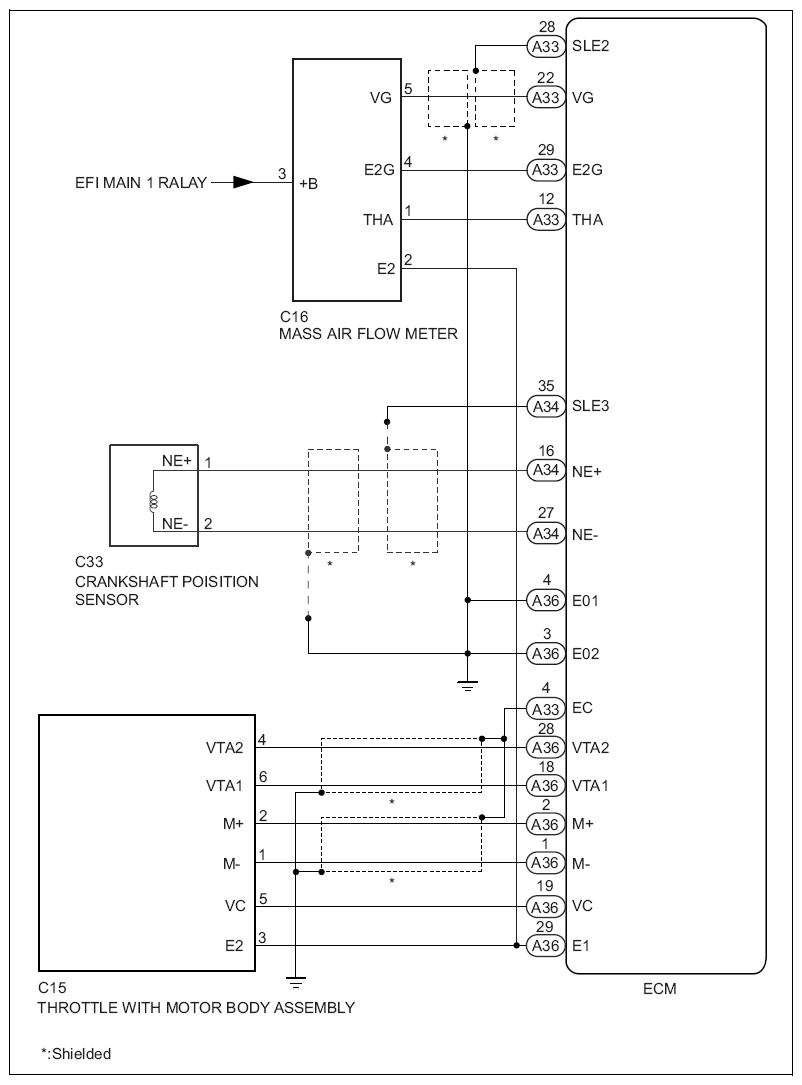

Fig 1: Intake System - Circuit Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

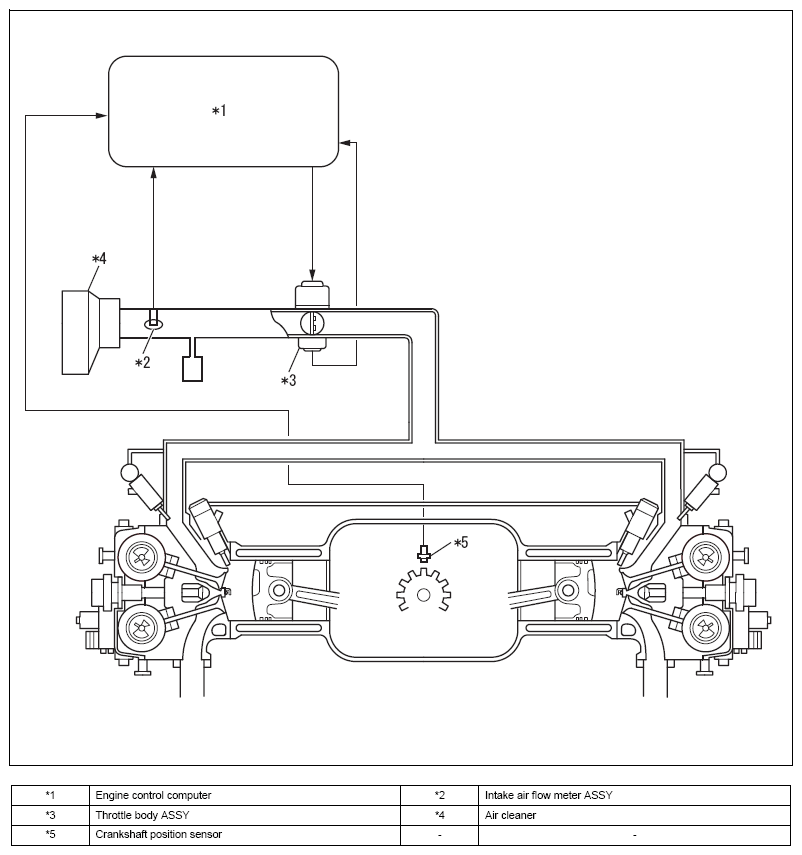

Fig 2: Intake System - Circuit Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
