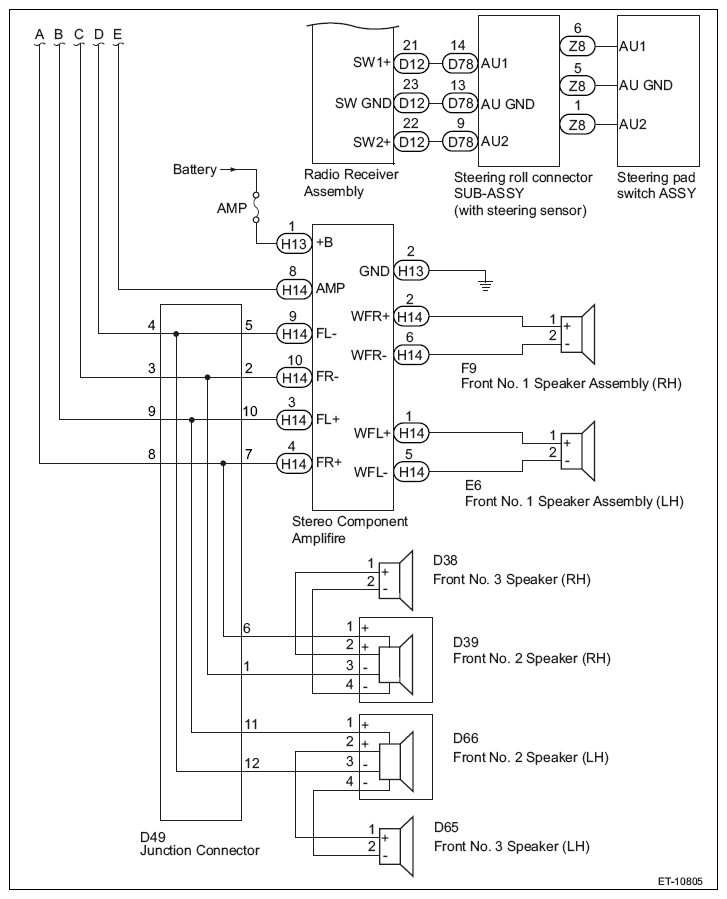

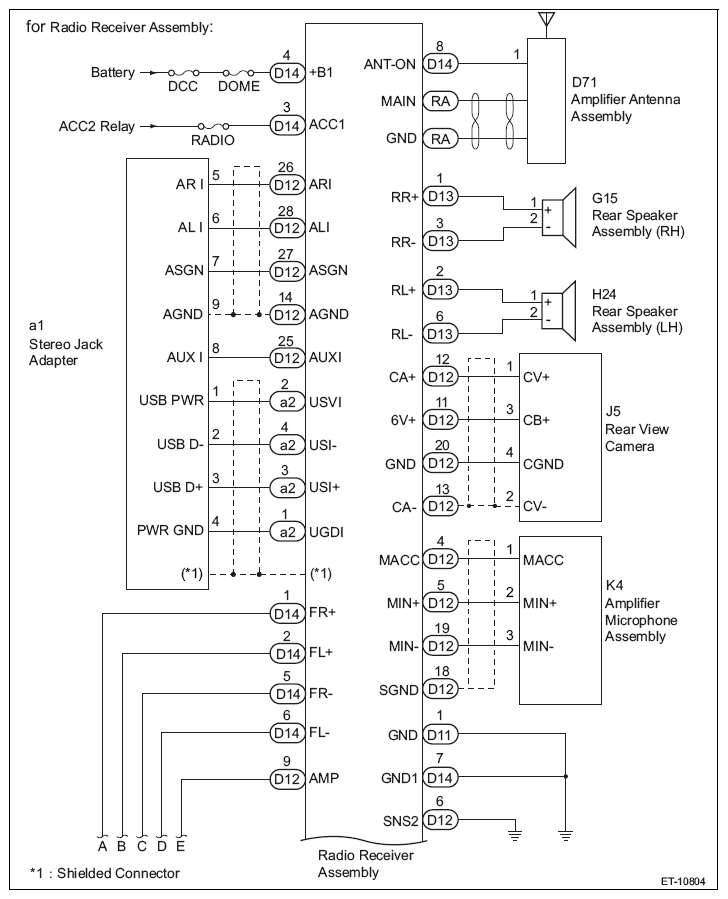

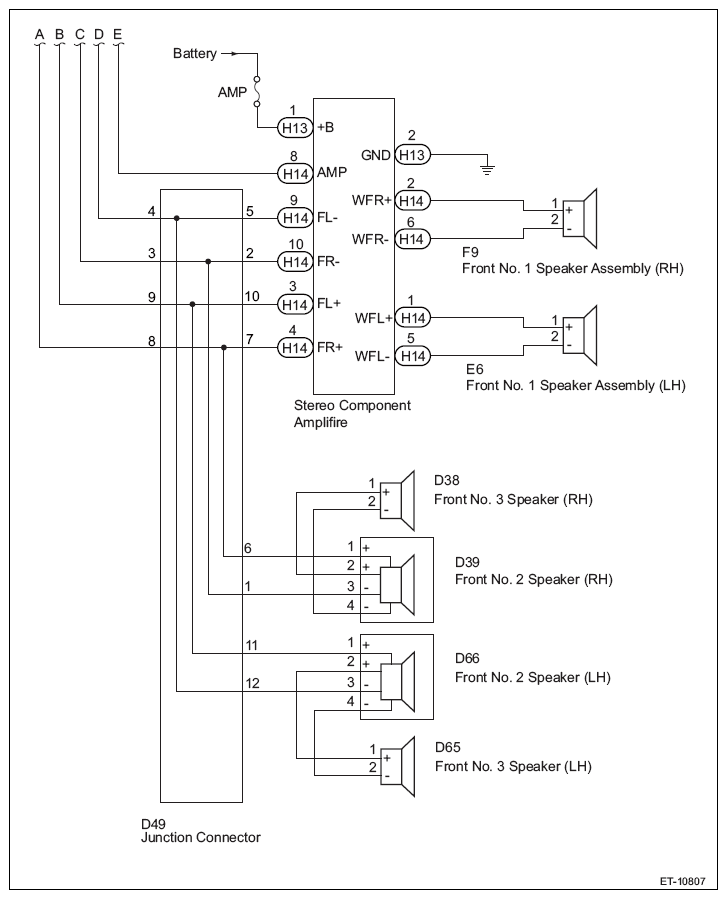

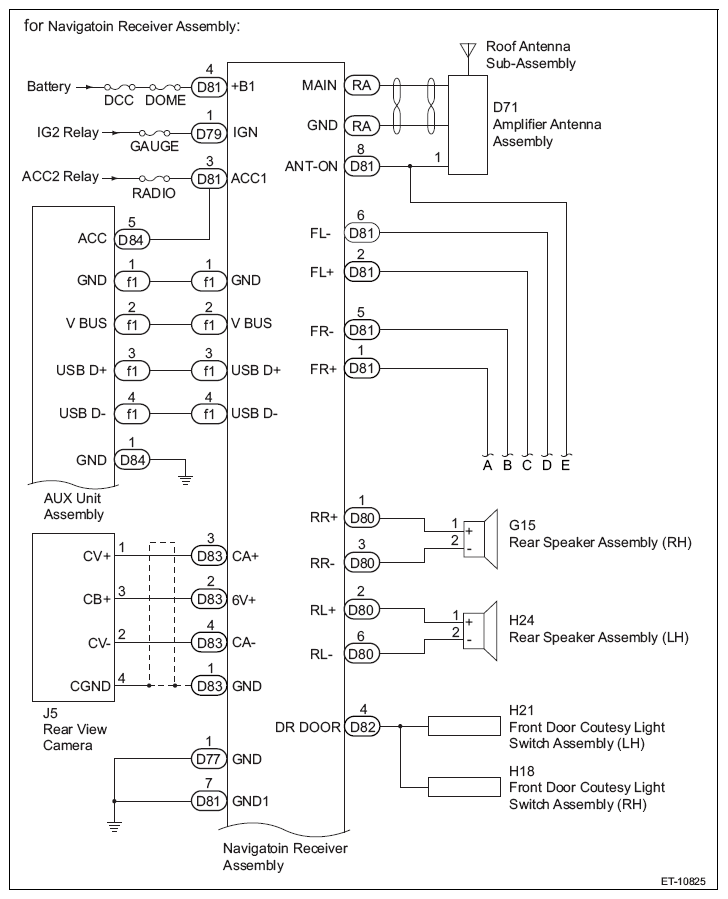

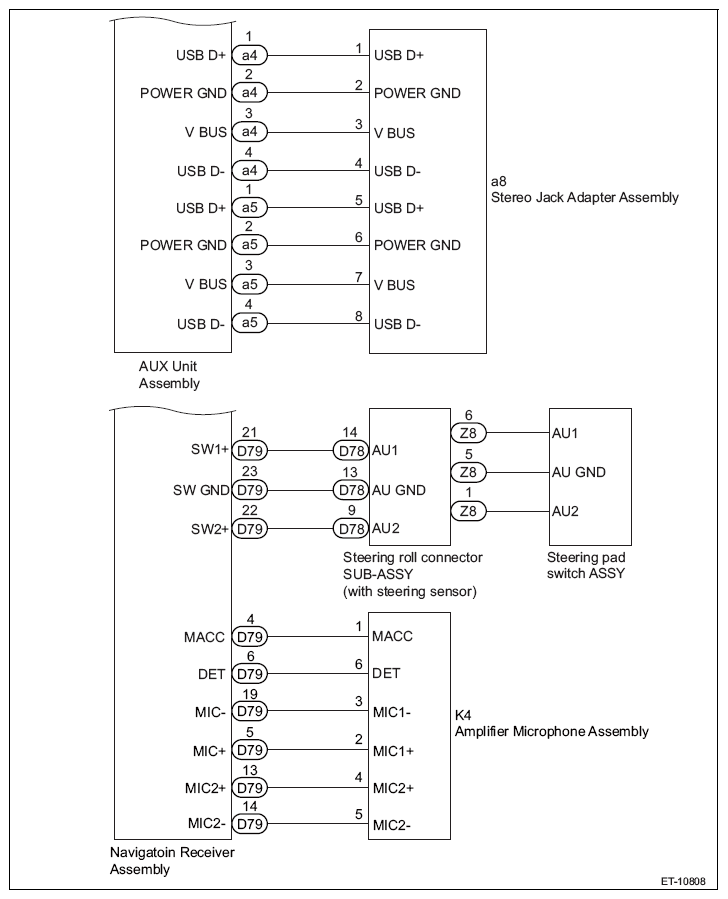

Circuit Figure

WARNING: This page is about a different car, the 2019 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
