General Description
›
Components With Torque Specifications
›
Mirror
Components With Torque Specifications: Mirror

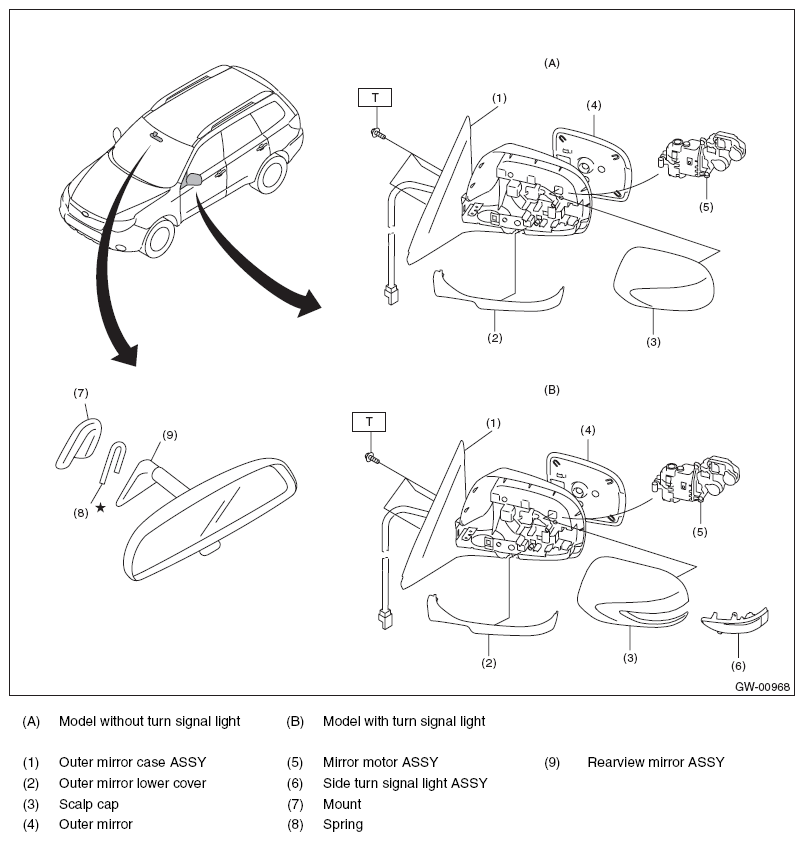

Fig 1: Mirror Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque:N.m (kgf-m, ft-lb)
T: 4.5 (0.46, 3.3)
Courtesy of SUBARU OF AMERICA, INC.
