VDC Control Module & Hydraulic Control Unit (VDCCM&H/U)

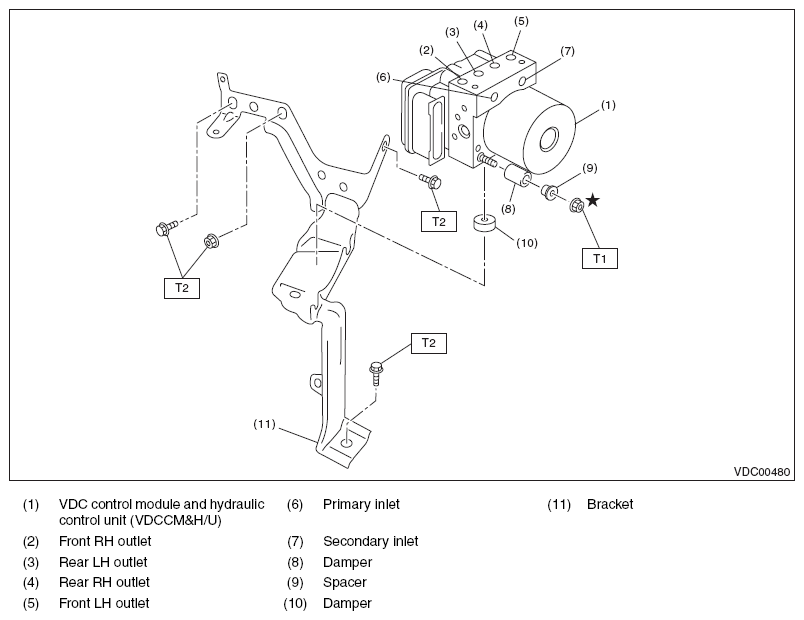

Fig 1: VDC Control Module & Hydraulic Control Unit And Related Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 33 (3.36, 24.3)
