Vehicle Dynamics Control (VDC) System
›
General Description
›
Components With Torque Specifications
›
Yaw Rate & G Sensor
Yaw Rate & G Sensor

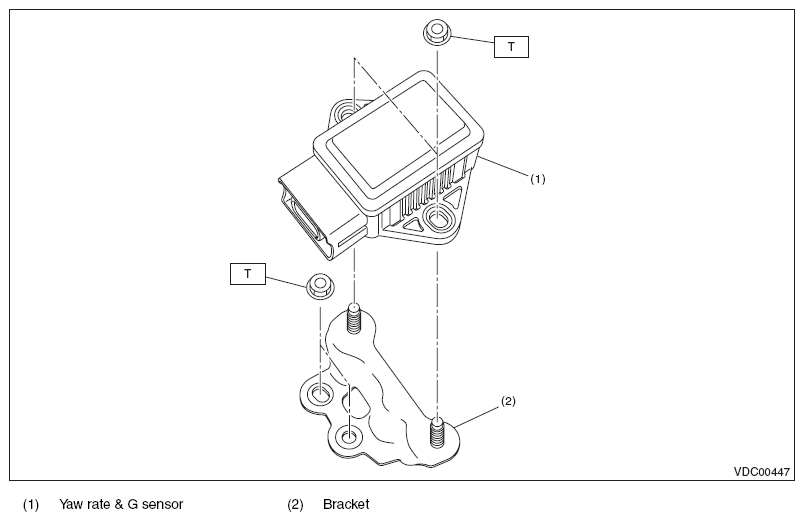

Fig 1: Identifying Yaw Rate & G Sensor And Bracket
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque:N.m (kgf-m, ft-lb)
T: 7.5 (0.76, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
