Fuel Sub Level Sensor: Installation
Install in the reverse order of removal while being careful of the following.
- Make sure the sealing portion is free from fuel or foreign matter before installation.
- Align protrusion (A) of the gasket to the position shown in the figure.
- Align protrusion (B) of the fuel sub level sensor to the cutout in the fuel sub level sensor upper plate.
- Tighten the nuts and bolts to the specified torque in the order as shown in the figure.

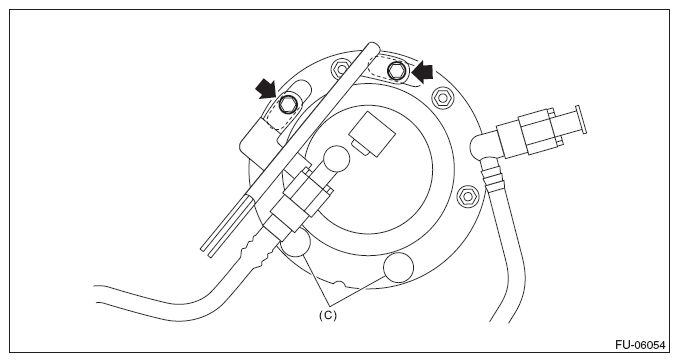

- After tightening, install the rubber cap (C) at the position shown in the figure.
NOTE:
- Use a new gasket.
- Do not forget to install rubber cap (C).
Tightening torque:
4.4 N.m (0.4 kgf-m, 3.2 ft-lb)
