General Description
›
Components With Torque Specifications
›
5MT Gear Shift Lever
5MT Gear Shift Lever

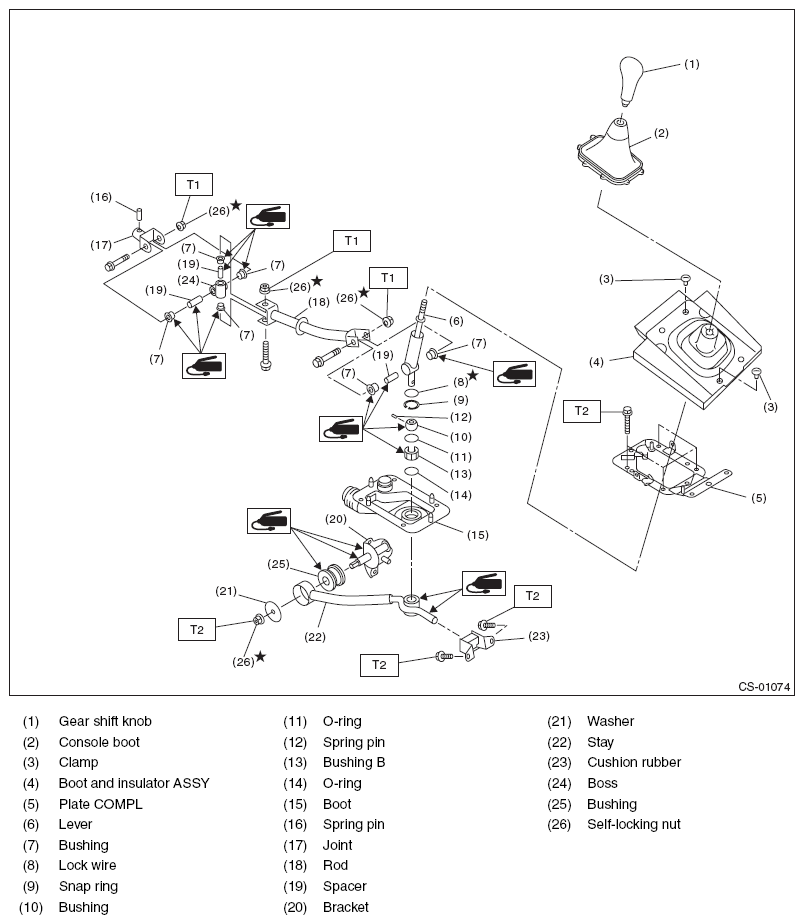

Fig 1: 5MT Gear Shift Lever Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque:N.m (kgf-m, ft-lb)
T1: 12 (1.2, 8.9)
T2: 18 (1.8, 13.3)
