Manual Transmission Assembly: Installation

Replace the differential side retainer oil seal. < Refer to REPLACEMENT , Differential Side Retainer Oil Seal. >
NOTE: Be sure to replace the differential side retainer oil seal after removing the front drive shaft.

ST 18675AA000 DIFFERENTIAL SIDE OIL SEAL INSTALLER

Fig 1: Replacing Differential Side Retainer Oil Seal
Courtesy of SUBARU OF AMERICA, INC.

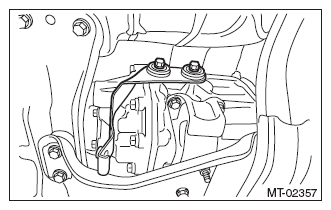

Tap the transmission hanger in the rear side of transmission with a rubber hammer to bend it until it is in close contact with the transmission case.
CAUTION: Do not apply excessive load or impact to the transmission case.
Install the transmission cushion rubber to the transmission assembly, and tighten bolt (A).
Install the transmission cushion rubber to the center crossmember, and tighten the nut (B).
Tightening torque:

Bolt (A)

35 N.m (3.6 kgf-m, 25.8 ft-lb)

Nut (B)

35 N.m (3.6 kgf-m, 25.8 ft-lb)

Fig 2: Identifying Transmission Cushion Rubber Nut And Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission onto the engine.
1. Lift up the transmission gradually using a transmission jack.
2. Engage at the spline section.
NOTE: Be careful not to hit the main shaft against the clutch cover.
While raising the transmission jack, loosen the turnbuckle of the ST, and set the engine unit to the original position.
Install the front crossmember and rear crossmember.
Tightening torque:

T1: 70 N.m (7.1 kgf-m, 51.6 ft-lb)

T2: 140 N.m (14.3 kgf-m, 103.3 ft-lb)

Fig 3: Front Crossmember And Rear Crossmember Bolts With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Take out the transmission jack.
Tighten the bolts and nuts which hold the lower side of transmission to the engine.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Fig 4: Locating Lower Side Of Transmission To Engine Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the transmission to the engine.
1. Install the starter. < Refer to INSTALLATION , Starter. >
2. Tighten the bolts which hold the upper side of the transmission to the engine.
NOTE: Long bolts are used in the section indicated by the arrows (A) in the figure below.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Fig 5: Locating Upper Side Of Transmission To Engine Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the ST.

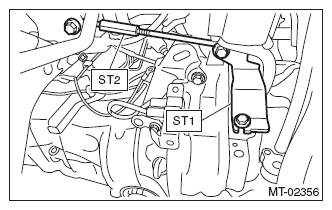

Fig 6: Removing ST (Engine Support Bracket And Engine Support)
Courtesy of SUBARU OF AMERICA, INC.
Install two ground cables.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 7: Identifying Rear End Of Engine Ground Cables
Courtesy of SUBARU OF AMERICA, INC.
Install the pitching stopper.
Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

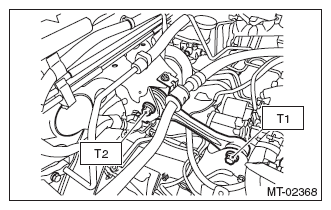

Fig 8: Pitching Stopper With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Install the front drive shaft into the transmission.
ST 28399SA010 OIL SEAL PROTECTOR

Fig 9: Installing Front Drive Shaft Into Transmission
Courtesy of SUBARU OF AMERICA, INC.
Insert the front arm ball joint into the housing lower part, and tighten the mounting bolt.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

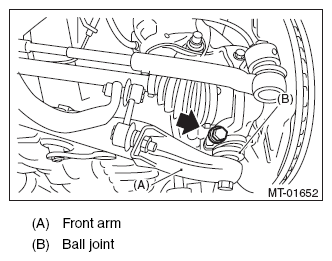

Fig 10: Identifying Front Arm And Ball Joint
Courtesy of SUBARU OF AMERICA, INC.
Attach the stabilizer link to the front arm.
Tightening torque:

30 N.m (3.1 kgf-m, 22.1 ft-lb)

Fig 11: Locating Stabilizer Link Nut
Courtesy of SUBARU OF AMERICA, INC.
Attach the gear shift rod and stay.
1. Attach the gear shift rod to the transmission.
  Tightening torque:

  12 N.m (1.2 kgf-m, 8.9 ft-lb)

  Fig 12: Identifying Stay And Gear Shift Rod
  Courtesy of SUBARU OF AMERICA, INC.
2. Install the stay to the transmission bracket.
  Tightening torque:

  18 N.m (1.8 kgf-m, 13.3 ft-lb)

  Fig 13: Identifying Stay And Transmission Bracket
  Courtesy of SUBARU OF AMERICA, INC.
Install the propeller shaft. < Refer to INSTALLATION , Propeller Shaft. >
Install the heat shield cover. < Refer to INSTALLATION , Heat Shield Cover. >
Install the hanger bracket to the transmission.
Tightening torque:

30 N.m (3.1 kgf-m, 22.1 ft-lb)

Fig 14: Identifying Transmission Hangar Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the rear exhaust pipe and muffler. < Refer to INSTALLATION , Rear Exhaust Pipe. > < Refer to INSTALLATION , Muffler. >
Install the front and center exhaust pipe. < Refer to INSTALLATION , Front Exhaust Pipe. > < Refer to INSTALLATION , Center Exhaust Pipe. >
Install the under cover. < Refer to INSTALLATION , Front Under Cover. >
Lower the vehicle.
Install the operating cylinder.
Tightening torque:

37 N.m (3.8 kgf-m, 27.3 ft-lb)

Fig 15: Locating Transmission Operating Cylinder Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the ground cord.
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

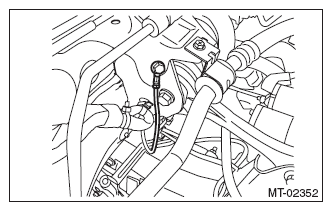

Fig 16: Identifying Ground Cord
Courtesy of SUBARU OF AMERICA, INC.
Install the engine hanger rear, and then connect the engine harness connector.
Tightening torque:

21 N.m (2.1 kgf-m, 15.5 ft-lb)

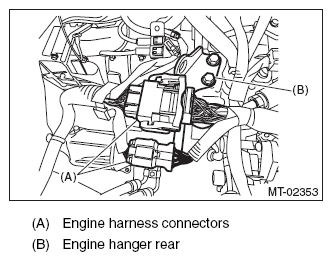

Fig 17: Identifying Engine Harness Connectors And Engine Hanger Rear
Courtesy of SUBARU OF AMERICA, INC.
Connect the following connectors.

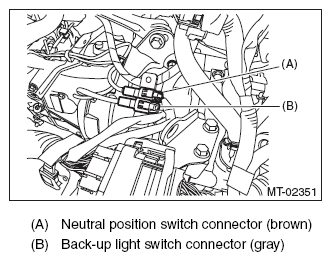

Fig 18: Identifying Neutral Position Switch Connector (Brown) And Back-Up Light Switch Connector (Gray)
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. < Refer to INSTALLATION , Air Intake Boot. >
Connect the battery ground terminal.
Remove the lift arm from vehicle.
