Engine Controls (Diagnostics) (H4DOTC)
›
Engine Control Module (ECM) I/O Signal
›
Electrical Specification
›
Measuring condition
Measuring condition
After warming-up
At idling

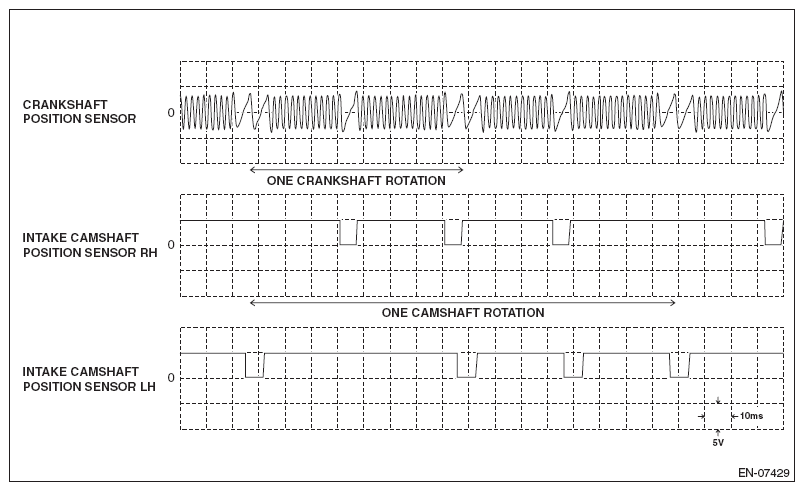

Fig 1: Camshaft And Crankshaft Position Sensor Characteristics Graph
Courtesy of SUBARU OF AMERICA, INC.

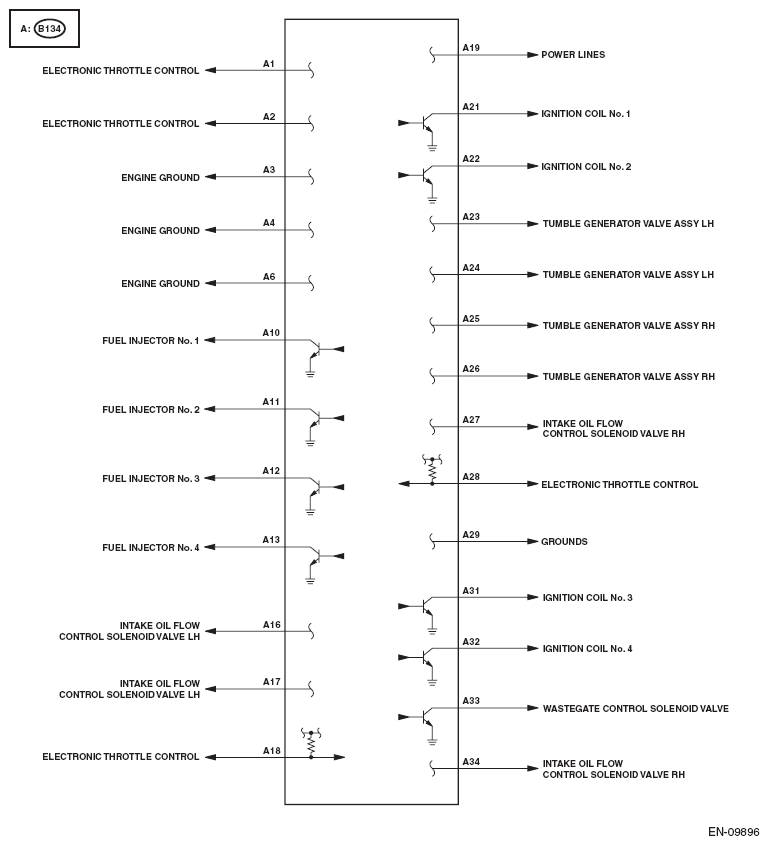

Fig 2: Engine Control Module (ECM) I/O Signal - Circuit Diagram (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

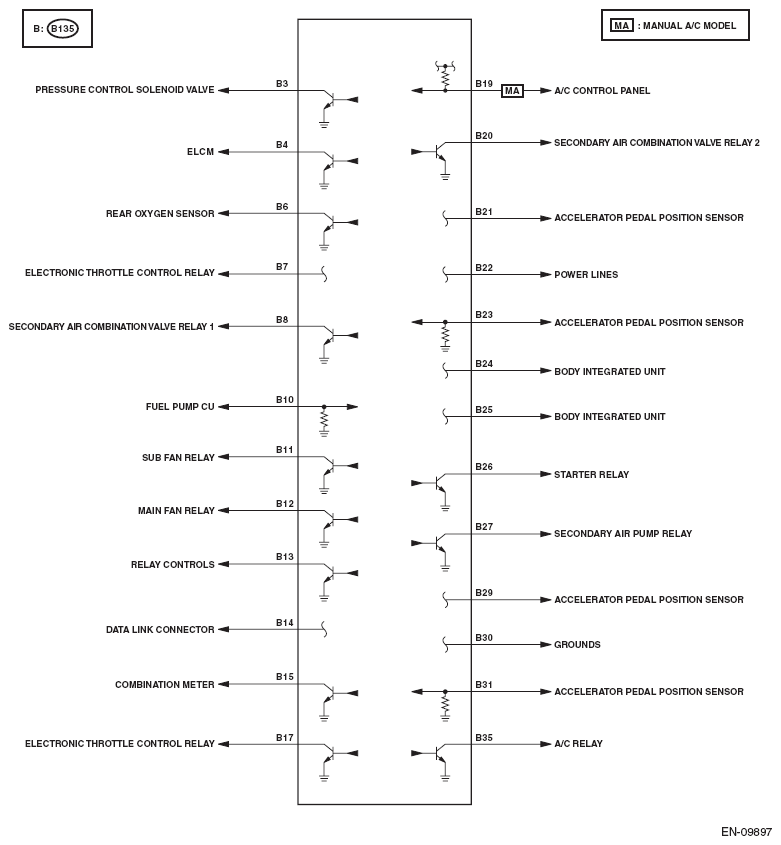

Fig 3: Engine Control Module (ECM) I/O Signal - Circuit Diagram (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

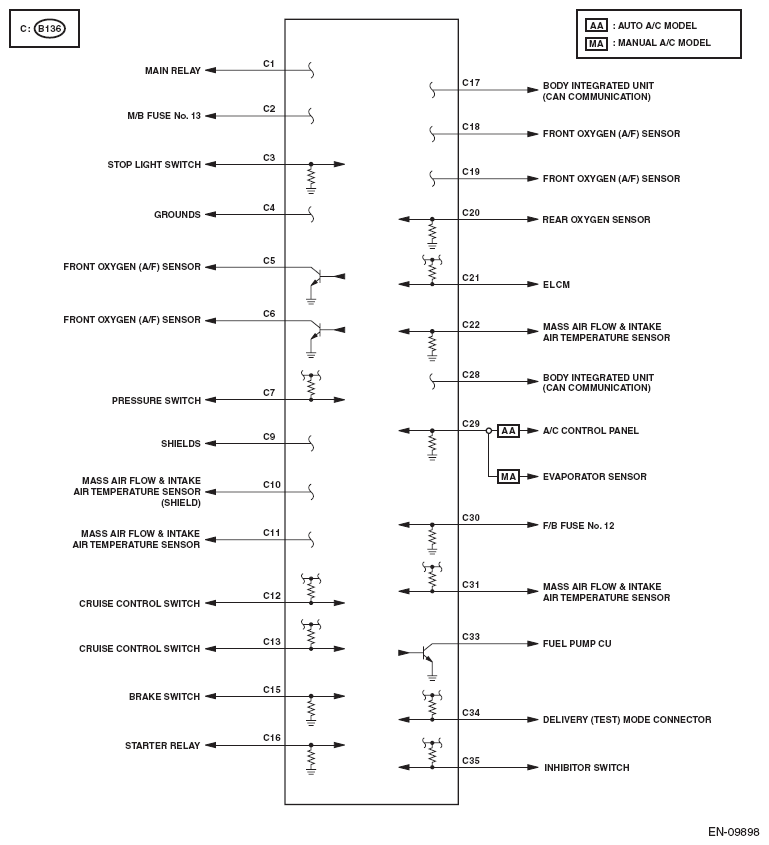

Fig 4: Engine Control Module (ECM) I/O Signal - Circuit Diagram (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

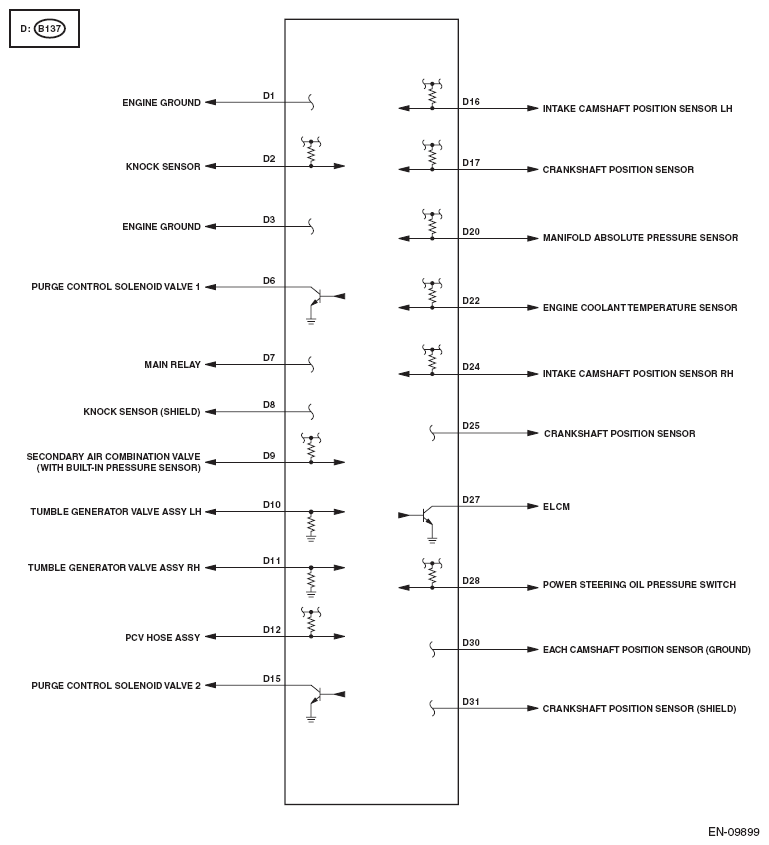

Fig 5: Engine Control Module (ECM) I/O Signal - Circuit Diagram (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
