Camshaft Position Sensor RH

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.
    Fig 1: Disconnecting/Connecting Battery Ground Cable
    G06336085Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector (A) from the camshaft position sensor RH, and remove the camshaft position sensor RH from the rear side of the cylinder head.

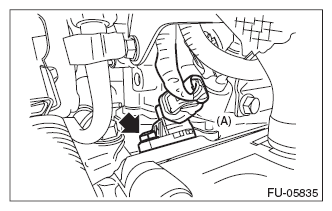

    Fig 2: Locating Camshaft Position Sensor RH Mounting Bolts
    G08539863Courtesy of SUBARU OF AMERICA, INC.
