Fuel Filler Pipe

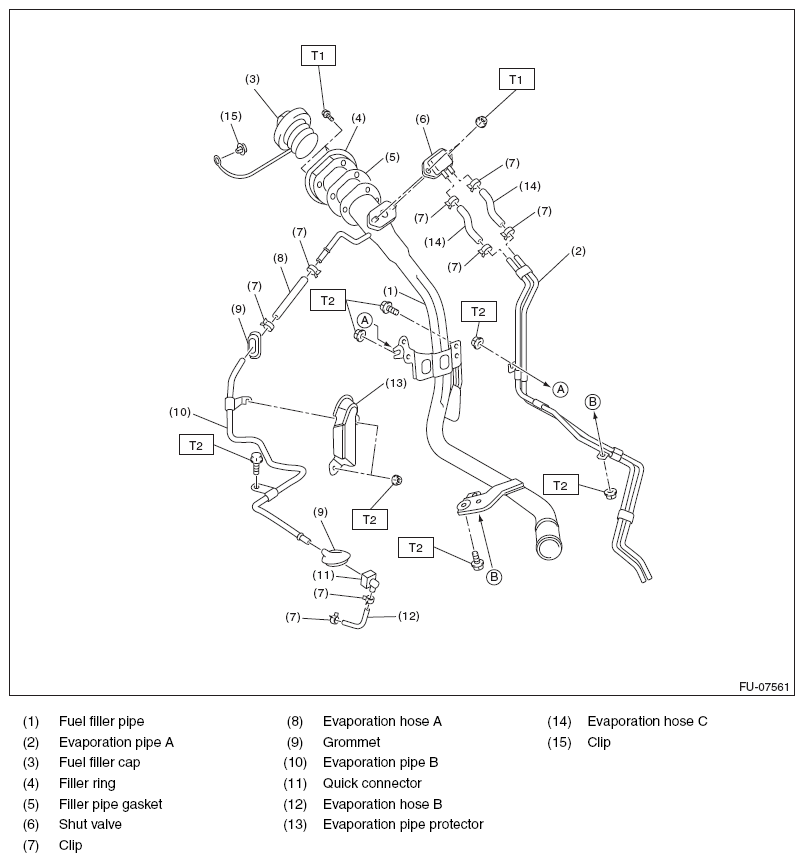

Fig 1: Fuel Filler Pipe Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.4 (0.4, 3.2)

T2: 7.5 (0.8, 5.5)
