Main Relay: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting/Connecting Battery Ground Cable
    G06336085Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the glove box lower cover. < Refer to REMOVAL , Glove Box. >
  3. Remove the main relay from the relay block on the back side of the glove box.

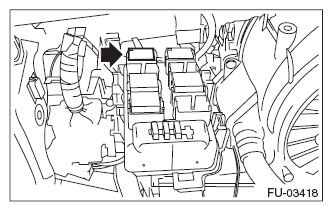

    Fig 2: Locating Main Relay
    G08570825Courtesy of SUBARU OF AMERICA, INC.
