Engine Controls (Diagnostics) (Except WRX): Electrical Component Location: Location: Sensor

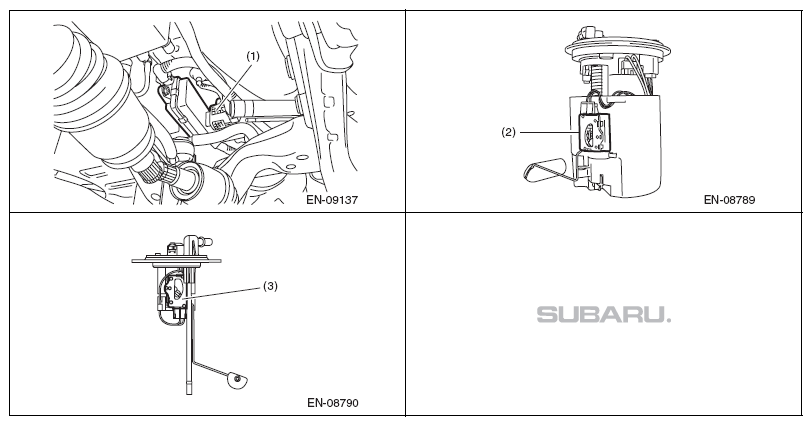

Fig 1: Sensor Electrical Component Location (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

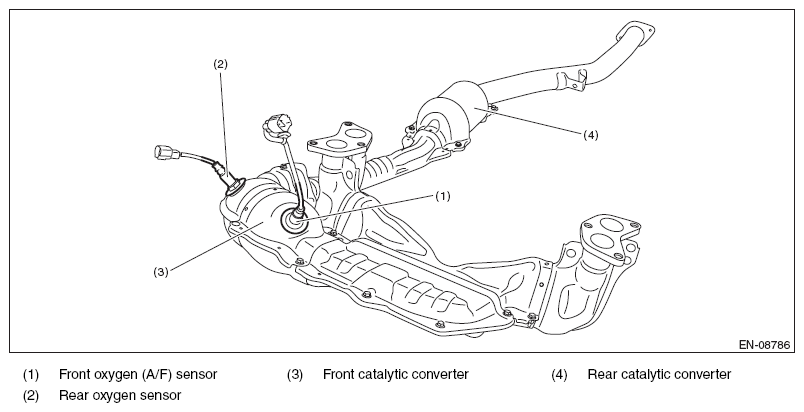

Fig 2: Sensor Electrical Component Location (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

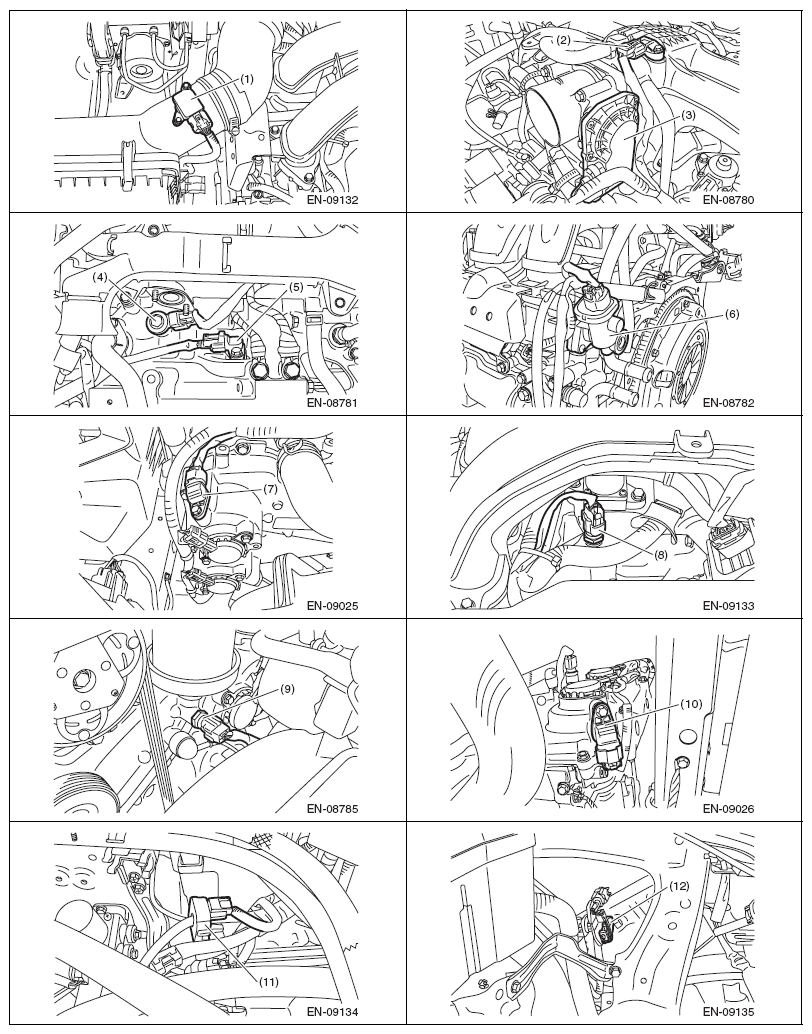

Fig 3: Sensor Electrical Component Location (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

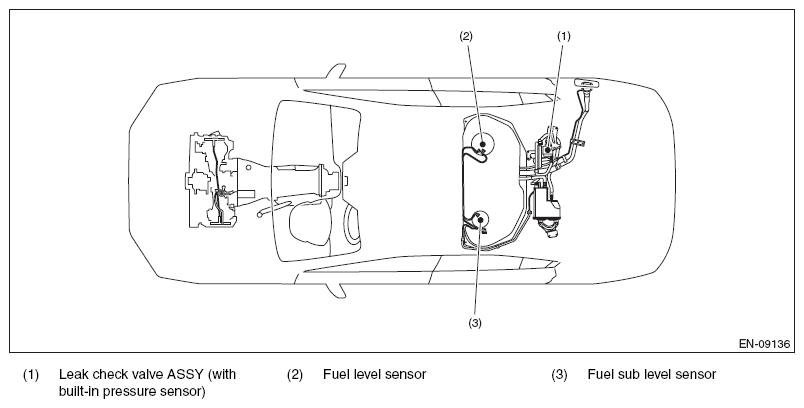

Fig 4: Sensor Electrical Component Location (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

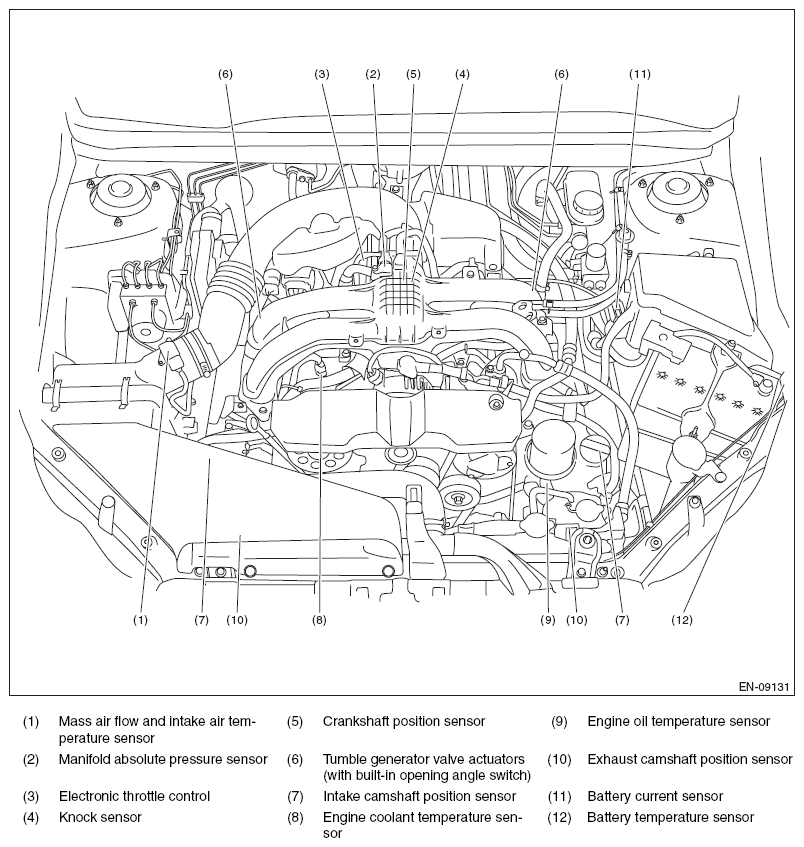

Fig 5: Sensor Electrical Component Location (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
