Turbine Speed Sensor: Removal

CAUTION: Be sure to prevent water or oil from contacting the connector terminal of turbine speed sensor. If adhesion occurs, replace with a new part.

Lift up the vehicle.
Remove the harness connector from turbine speed sensor.
Remove the turbine speed sensor.

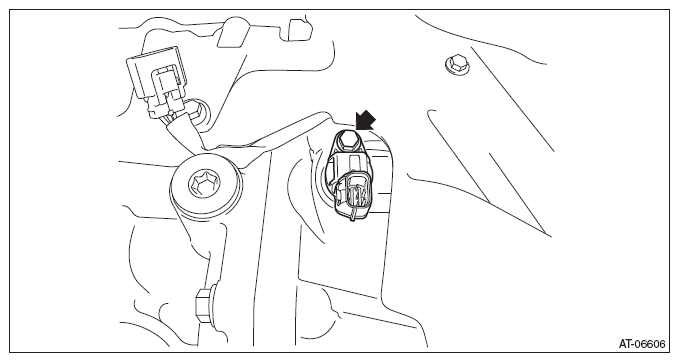

Fig 1: Locating Turbine Speed Sensor Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
