Outback Model

NOTE: harman/kardon® audio system only.
  1. Disconnect the ground cable from battery.
  2. Remove the rear quarter trim LWR. Refer to OUTBACK MODEL .
  3. Remove the woofer.
    1. Remove the woofer bracket mounting bolts and nuts, then remove the woofer bracket.
    2. Disconnect the harness connector and remove the woofer assembly.

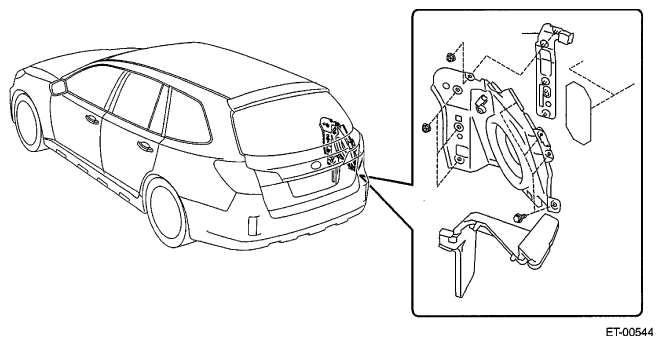

      Fig 1: Identifying Woofer Assembly (Outback Model)
      G06653588Courtesy of SUBARU OF AMERICA, INC.
