Powered Seat System With Memory Preset
›
Specification
›
System Diagram
System Diagram

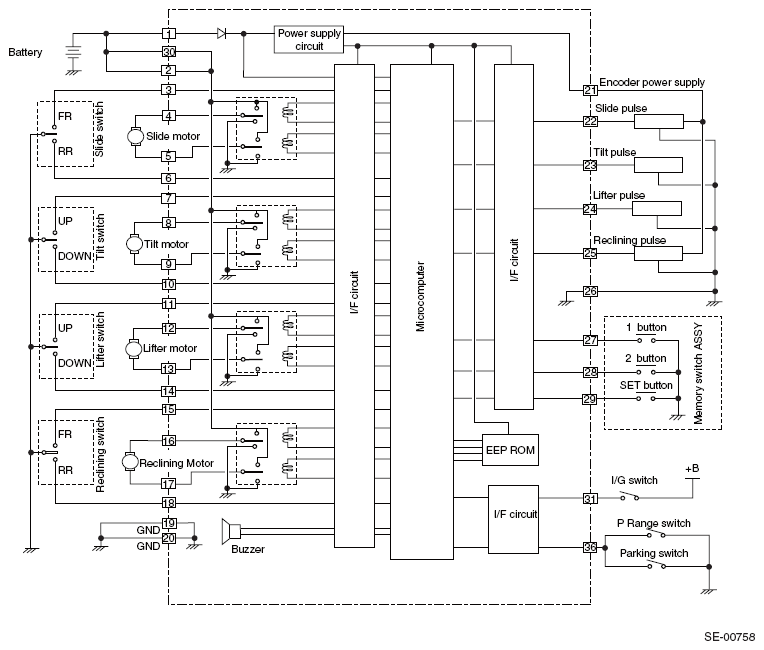

Fig 1: Powered Seat (With Memory Preset) System Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
