Home › Subaru › 2013 › Outback Base, Automatic CVT Trans › Repair and Diagnosis › Engine Mechanical › Mechanical › Engine Intake System (Induction) (H4DO) › Air Intake Duct › Removal

Air Intake Duct: Removal

  1. Remove the clip which secures the air intake duct, and remove the air intake duct.

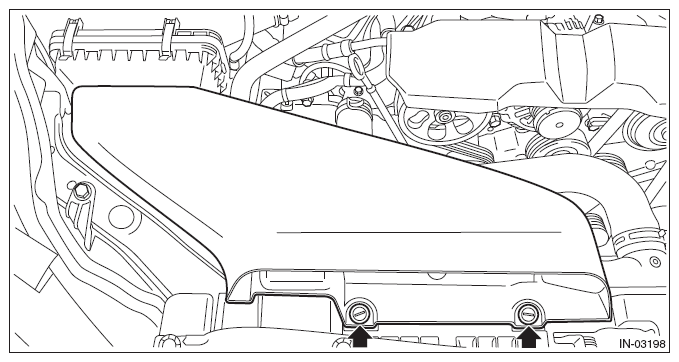

    Fig 1: Locating Air Intake Duct Clip
    G08582748Courtesy of SUBARU OF AMERICA, INC.
