Outback Base, Automatic CVT Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls (Diagnostics) (H4DO)
›
Engine Control Module (ECM) I/O Signal
›
Electrical Specification
›
Measuring condition
Measuring condition
After warming-up
At idling

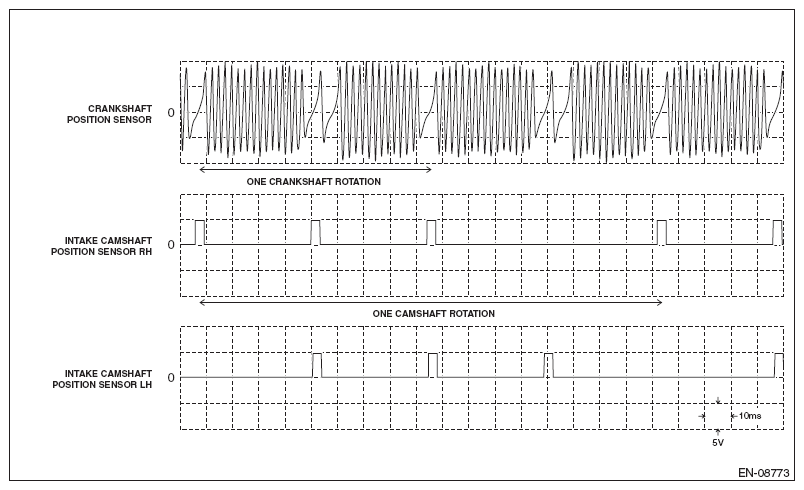

Fig 1: Crankshaft Position Sensor, Intake Camshaft Position Sensor (RH And LH) Waveform
Courtesy of SUBARU OF AMERICA, INC.

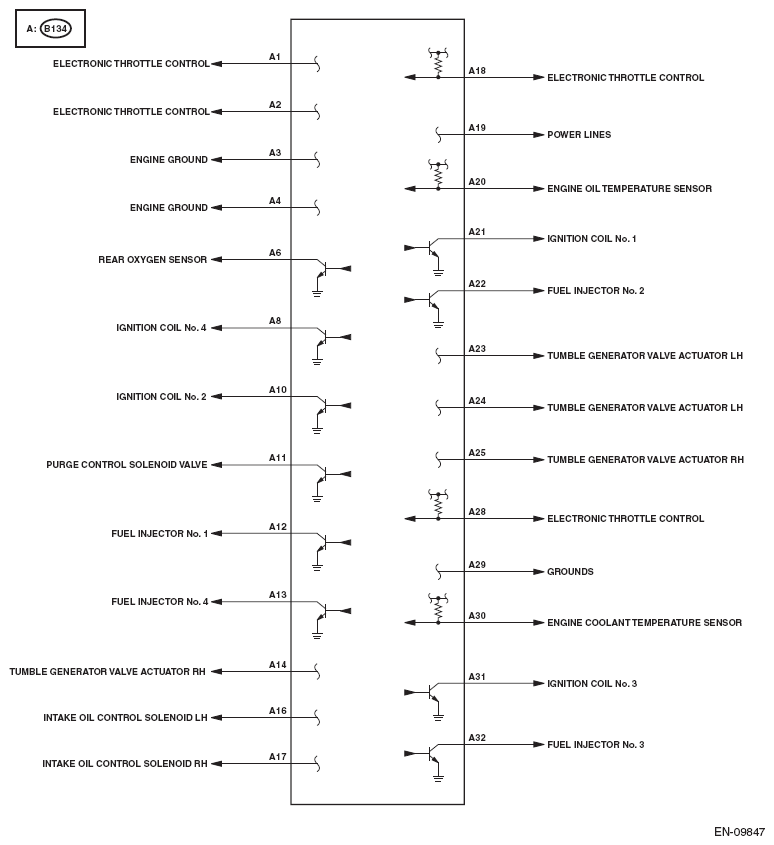

Fig 2: ECM I/O Signal - Wiring Diagram (B134)
Courtesy of SUBARU OF AMERICA, INC.

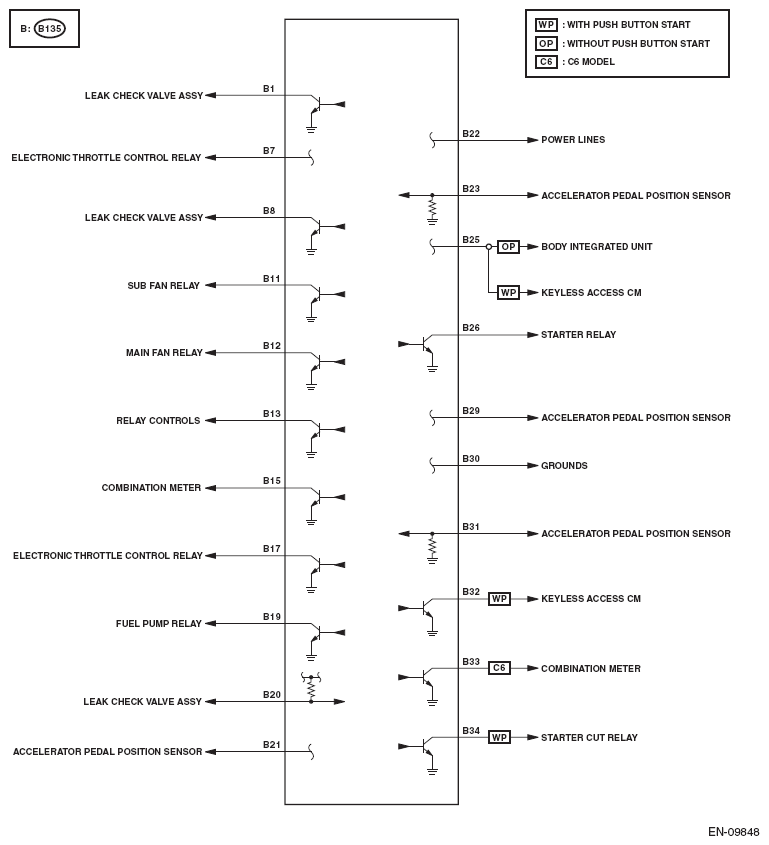

Fig 3: ECM I/O Signal - Wiring Diagram (B135)
Courtesy of SUBARU OF AMERICA, INC.

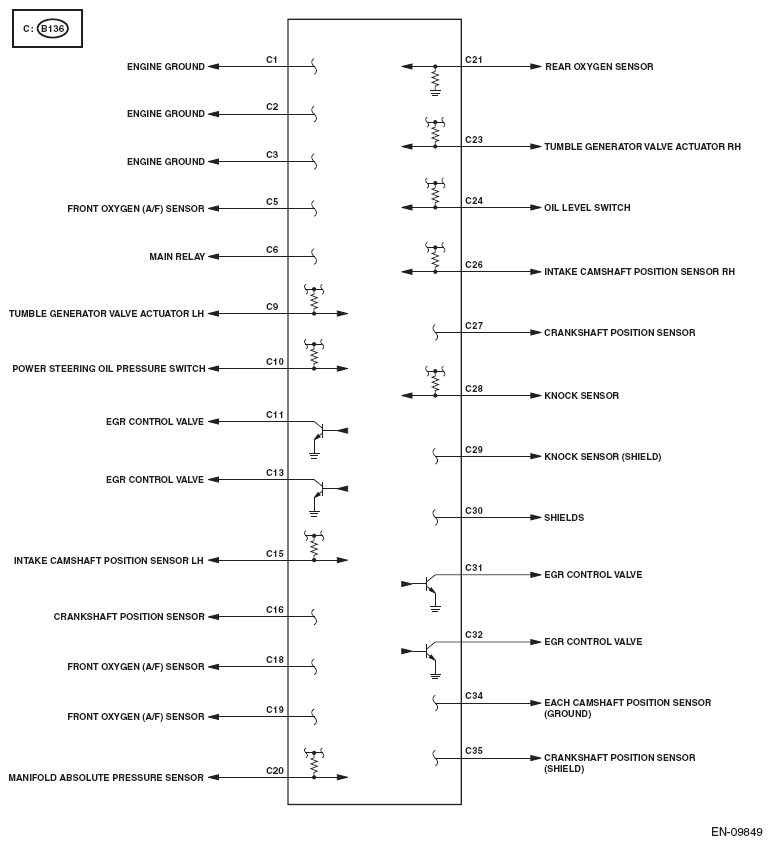

Fig 4: ECM I/O Signal - Wiring Diagram (B136)
Courtesy of SUBARU OF AMERICA, INC.

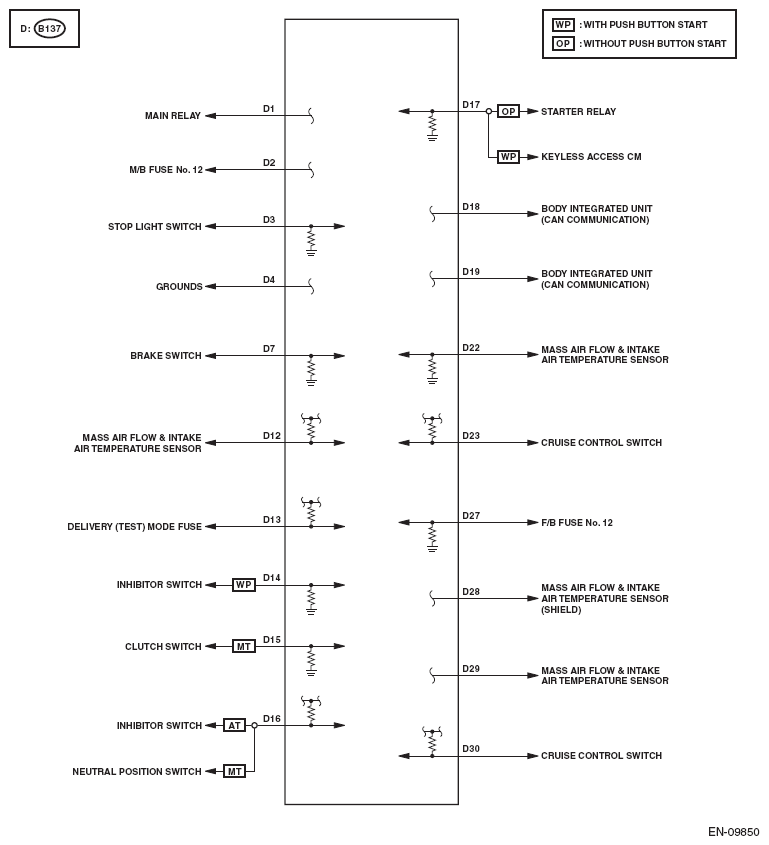

Fig 5: ECM I/O Signal - Wiring Diagram (B137)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
