Ignition Switch Illumination: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the screws and steering cover lower.

Fig 1: Locating Steering Cover Lower Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness cover lock.
Remove the screws and detach the knee protector.

Fig 2: Locating Knee Protector Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws and remove the steering column cover upper.

Fig 3: Removing Steering Column Cover Upper Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the instrument panel lower cover. < Refer to REMOVAL , Instrument Panel Lower Cover. >
Disconnect the ignition switch illumination connector (A).
Turn the ignition switch illumination connector to the left and remove it.

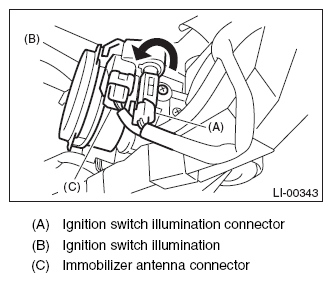

Fig 4: Turning Ignition Switch Illumination Connector
Courtesy of SUBARU OF AMERICA, INC.
