Oil Pan and Strainer: Installation

Clean the mating surface of oil pan and transmission case.
Install the O-ring to the oil strainer.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-ring.

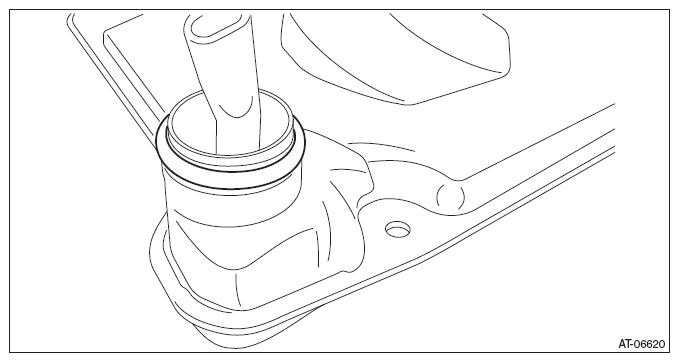

  Fig 1: Identifying Oil Strainer O-Ring
  Courtesy of SUBARU OF AMERICA, INC.
Install the oil strainer.
Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)

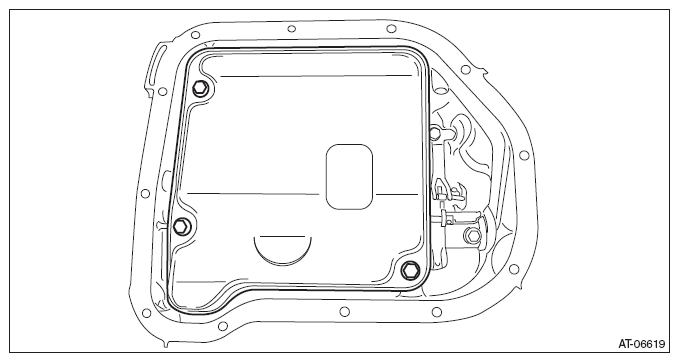

Fig 2: Identifying Oil Strainer Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Clean the magnet.
Attach the magnet at the specified position of the oil pan.
Apply liquid gasket all around the oil pan mating surface seamlessly.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020) or equivalent

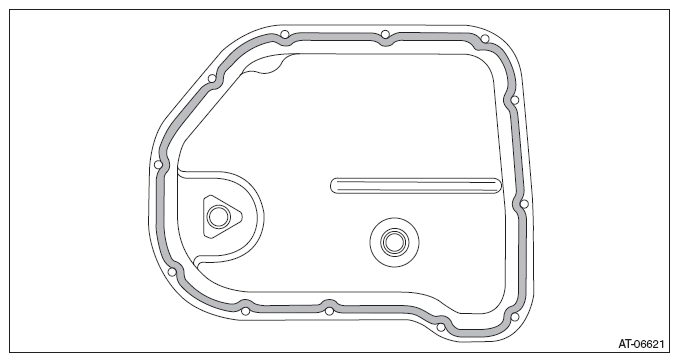

Fig 3: Identifying Liquid Gasket Applying Areas On Mating Surface Of Oil Pan
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan by equally tightening the bolts.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

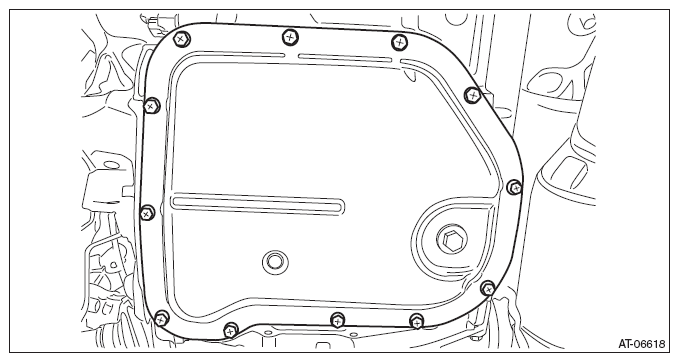

Fig 4: Identifying Oil Pan Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Refill CVTF and adjust the level. Refer to REPLACEMENT .
