Parking Pawl: Removal
- Remove the transmission assembly from the vehicle. Refer to
REMOVAL .
- Shift the range select lever to "N" range.
- Remove the extension case. Refer to
REMOVAL .

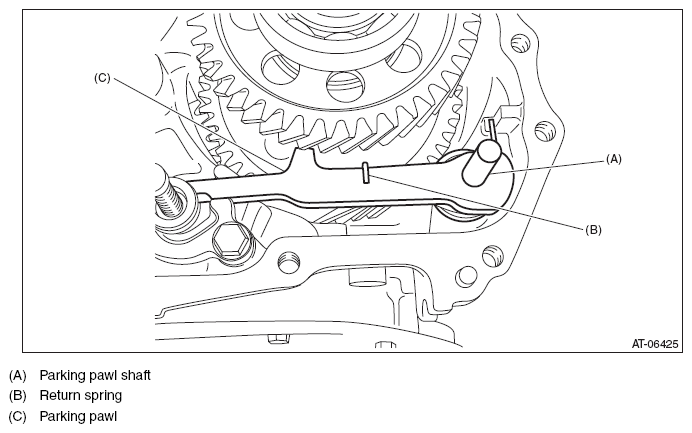

- Remove the parking pawl shaft, return spring and parking pawl.
Courtesy of SUBARU OF AMERICA, INC.
