Transfer Driven Gear: Removal

  1. Remove the transmission assembly from the vehicle. Refer to REMOVAL .
  2. Remove the extension case. Refer to REMOVAL .
  3. Remove the transfer clutch assembly. Refer to REMOVAL .
  4. Remove the transfer driven gear assembly.

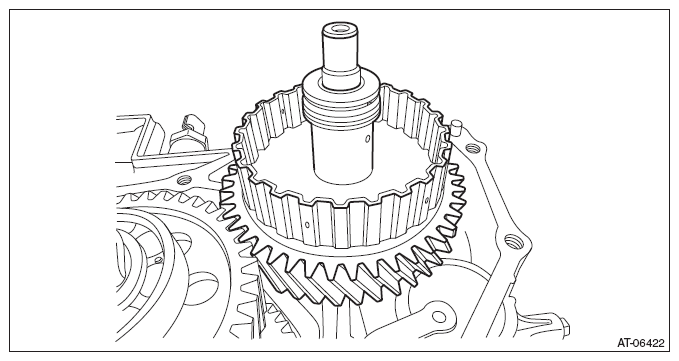

    Fig 1: Identifying Transfer Driven Gear Assembly
    G08317923Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the seal ring from the transfer driven gear assembly.
    Fig 2: Locating Transfer Driven Gear Assembly Seal Ring
    G08317901Courtesy of SUBARU OF AMERICA, INC.
