Keyless Access With Push Button Start System

NOTE: Except for model without keyless access.

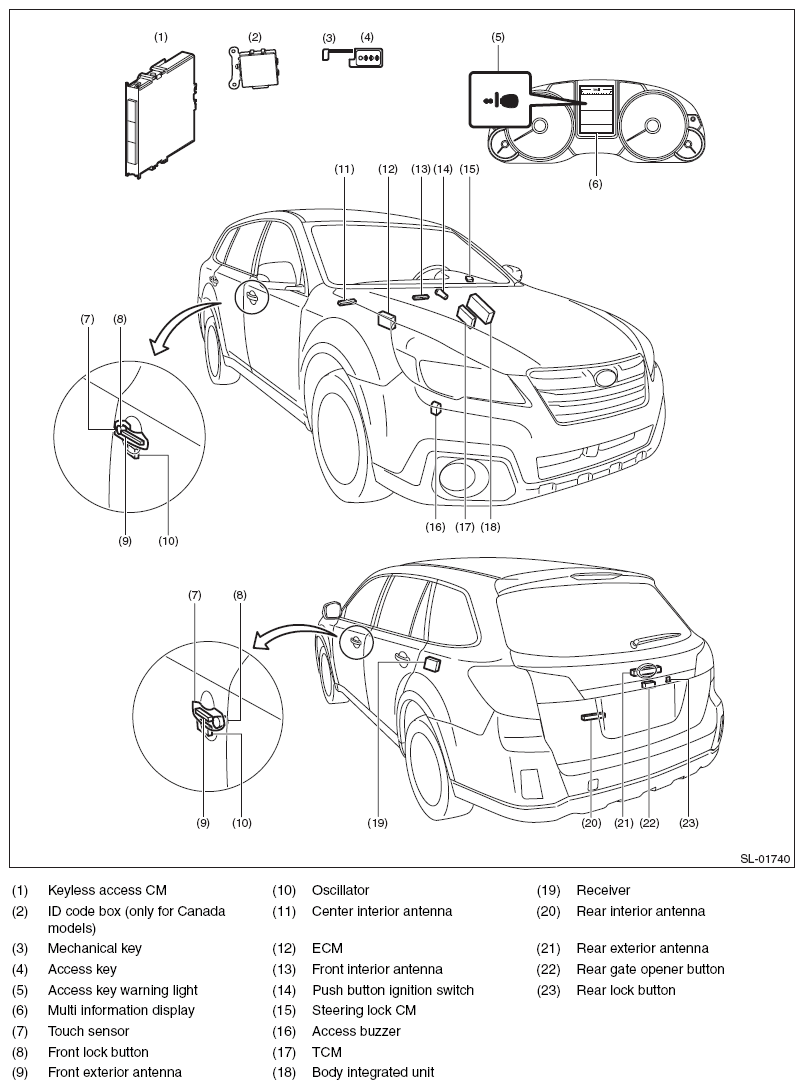

Fig 1: Identifying Keyless Entry System Components (Except For Model Without Keyless Access)

Courtesy of SUBARU OF AMERICA, INC.
