Power Amplifier: Removal

NOTE: harman/kardon® audio system only.

Disconnect the ground cable from battery.
NOTE: For the power seat, move the seat before removing the battery ground terminal.
Move the passenger's seat to the front-most position.
Remove the power amplifier.
1. Disconnect the harness connector.
2. Remove the nut and remove the power amplifier.

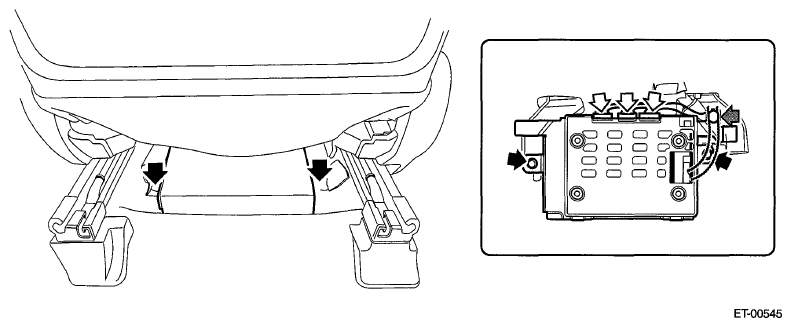

  Fig 1: Locating Power Amplifier Mounting Nuts
  Courtesy of SUBARU OF AMERICA, INC.
