Accessory Relay (Push Button Start): Removal

Disconnect the ground cable from battery.
Remove the instrument panel lower cover. Refer to REMOVAL .
Remove the relay & fuse box.
1. Disconnect connectors.
2. Remove the bolts and remove the relay & fuse box.

  Fig 1: Disconnecting Relay & Fuse Box Connectors
  Courtesy of SUBARU OF AMERICA, INC.
Remove the connector holder.
1. Disconnect the connector.
2. Remove the bolt and remove the connector holder.

  Fig 2: Disconnecting Connector
  Courtesy of SUBARU OF AMERICA, INC.

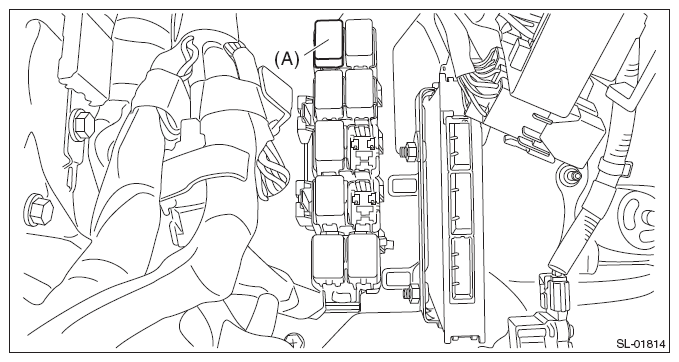

Remove the accessory relay (push button start) (A) from the relay holder.

Fig 3: Identifying Accessory Relay
Courtesy of SUBARU OF AMERICA, INC.
