Anti-Theft System - Security And Locks: Oscillator: Removal

CAUTION: The oscillator is integrated with the front door outer handle frame assembly.
Do not detach the oscillator from the front door outer handle frame assembly.
If it requires replacement, replace the entire front outer handle frame assembly.

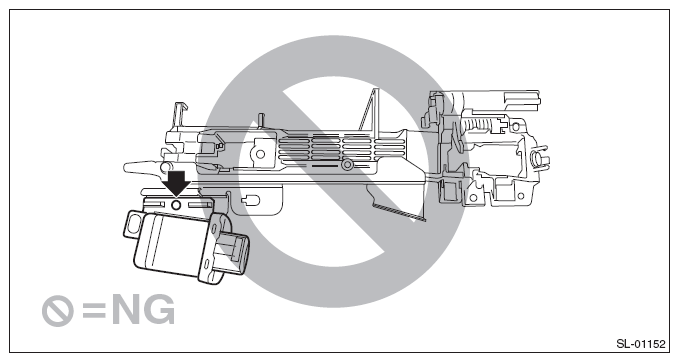

Fig 1: Caution For Detaching Oscillator From Front Door Outer Handle Frame Assembly

Courtesy of SUBARU OF AMERICA, INC.

To remove the front door outer handle frame assembly, refer to REMOVAL .
