Rear Lock Button: Removal

NOTE: The rear lock button (lock) is integrated into the license plate light assembly harness.

Remove the rear gate garnish assembly. Refer to REMOVAL .
Remove the rear lock button (lock).
1. Remove the screws and remove the rear lock button (lock).

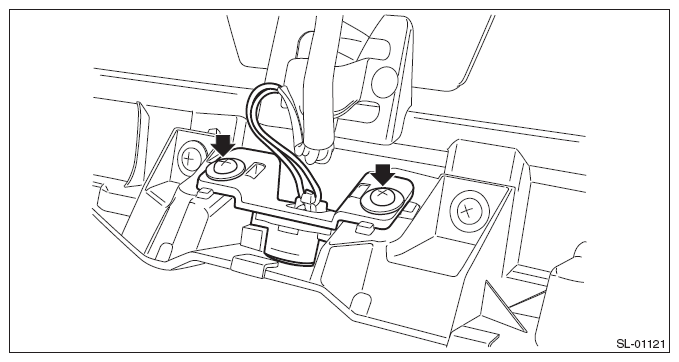

  Fig 1: Locating Rear Lock Button Screws
  Courtesy of SUBARU OF AMERICA, INC.
2. Release the locks at both ends of the rear gate opener button by pushing with a flat tip screwdriver.

  Fig 2: Releasing Rear Gate Opener Button Locks Using Flat Tip Screwdriver
  Courtesy of SUBARU OF AMERICA, INC.
3. Disconnect the rear exterior antenna connector.

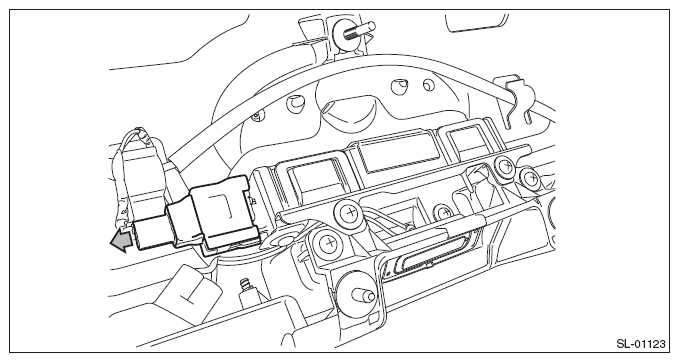

  Fig 3: Disconnecting Rear Exterior Antenna Connector
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove the screws and remove the license plate light.

  Fig 4: Identifying License Plate Light With Screws
  Courtesy of SUBARU OF AMERICA, INC.
5. Remove the license plate light assembly harness from the rear gate garnish assembly.

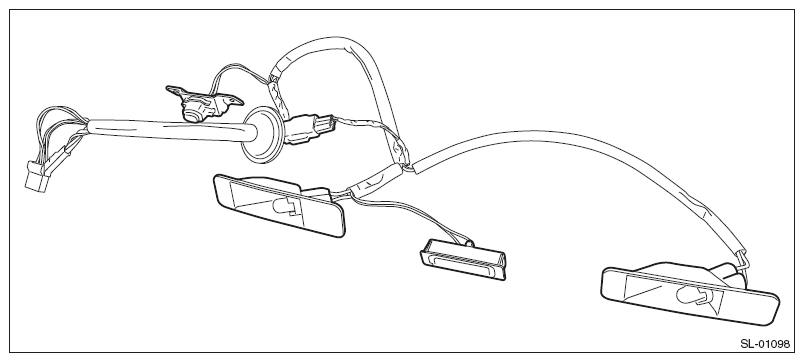

  Fig 5: Identifying License Plate Light Assembly Harness
  Courtesy of SUBARU OF AMERICA, INC.
