Steering Lock CM: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the steering column assembly. Refer to REMOVAL .
  3. Remove the steering lock CM.
    1. Secure the steering column in a vise.
    2. Remove the bolts, and remove the dynamic damper.

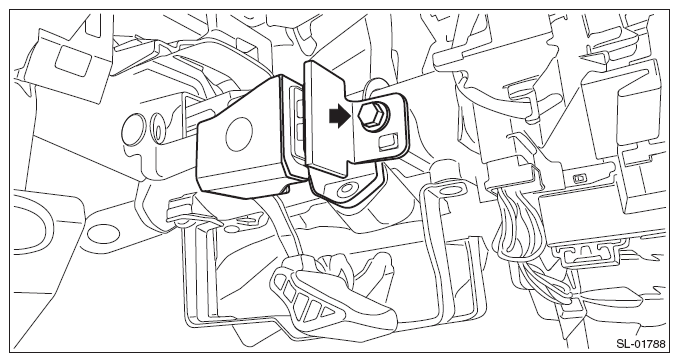

      Fig 1: Locating Steering Lock CM Bolt
      G08585037Courtesy of SUBARU OF AMERICA, INC.
    3. Drill out the bolts and remove the steering lock CM.

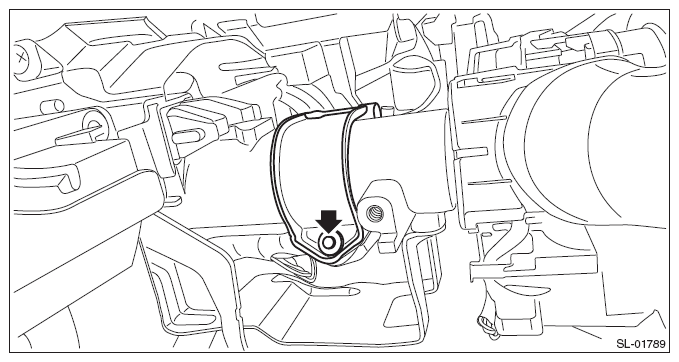

      Fig 2: Locating Steering Lock CM Bolt
      G08585038Courtesy of SUBARU OF AMERICA, INC.
