Sunroof Assembly: Disassembly

Remove the bolts and then remove the sunroof motor.

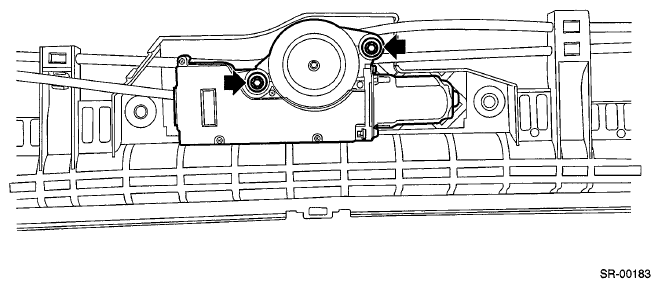

Fig 1: Locating Sunroof Motor Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the stopper rubber and pull out the sunshade from sunroof frame.

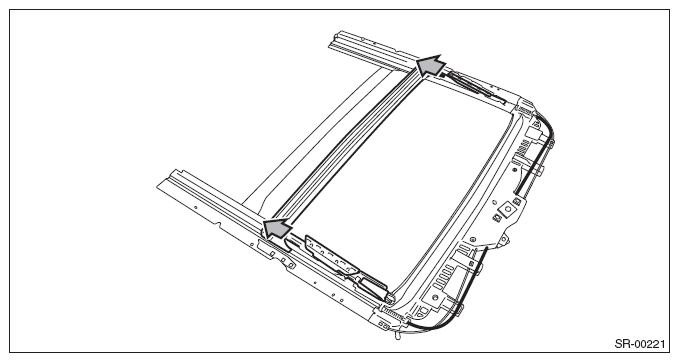

Fig 2: Pulling Out Sunshade From Sunroof Frame
Courtesy of SUBARU OF AMERICA, INC.
Remove the sunroof cable assembly.
1. Remove the screw and remove the drain holder.

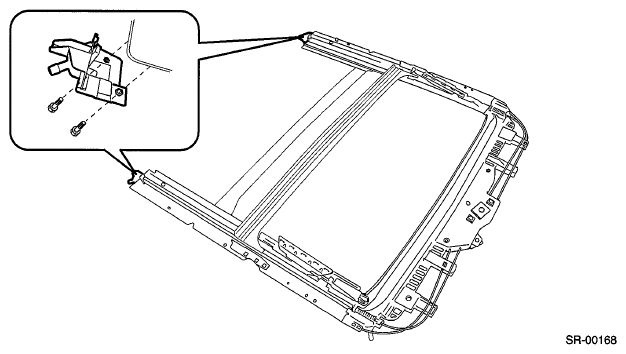

  Fig 3: Identifying Sunroof Cable Assembly With Screws
  Courtesy of SUBARU OF AMERICA, INC.
2. Pull out the sunroof cable assembly from the frame roof assembly.

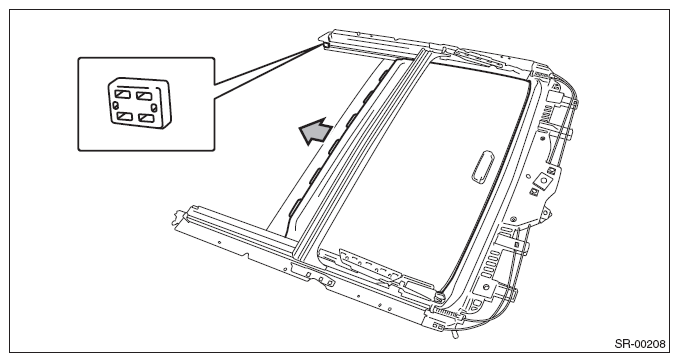

  Fig 4: Pulling Out Sunroof C able Assembly
  Courtesy of SUBARU OF AMERICA, INC.
