Engine Cooling System (H4DO): Radiator: Installation

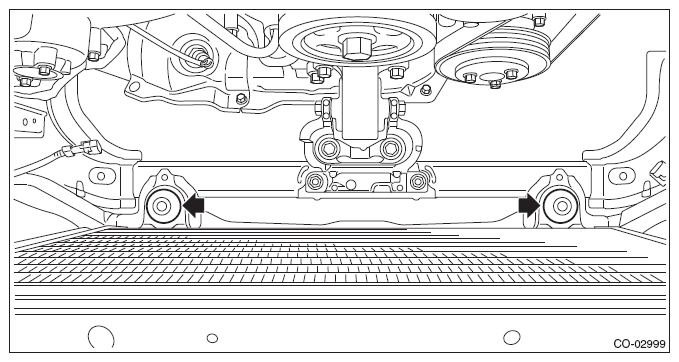

Attach the radiator lower cushion to the radiator lower bracket.

Fig 1: Locating Radiator Lower Cushion To Radiator Lower Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator to vehicle.
NOTE: Make pins on the lower side of radiator be fitted into the radiator lower cushions.

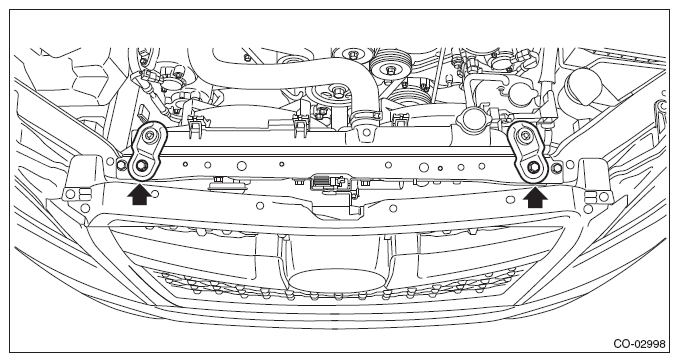

Install the radiator upper brackets.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Fig 2: Locating Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.

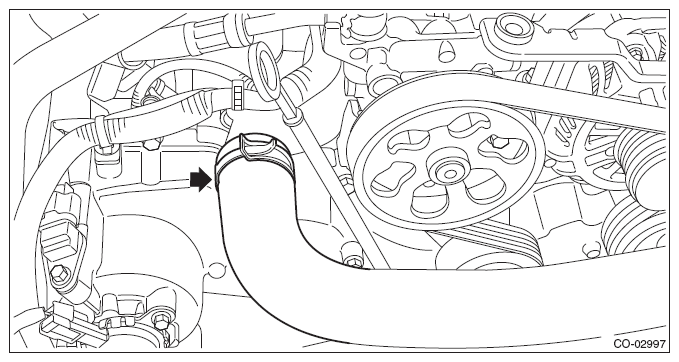

Connect the radiator inlet hose to the water pipe assembly.

Fig 3: Locating Radiator Inlet Hose To Water Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector (A) to the main fan motor assembly and the connector (B) to the sub fan motor assembly.

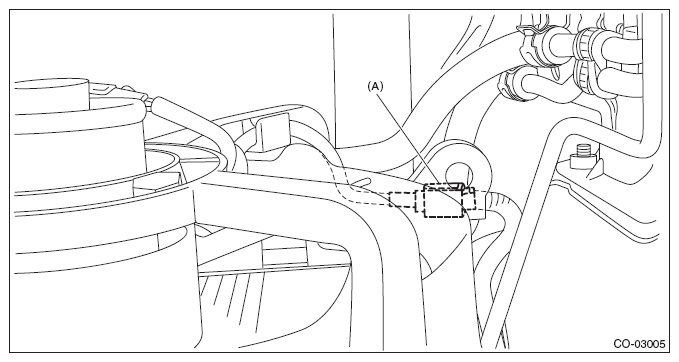

Fig 4: Identifying Main Fan Motor Assembly Connector
Courtesy of SUBARU OF AMERICA, INC.

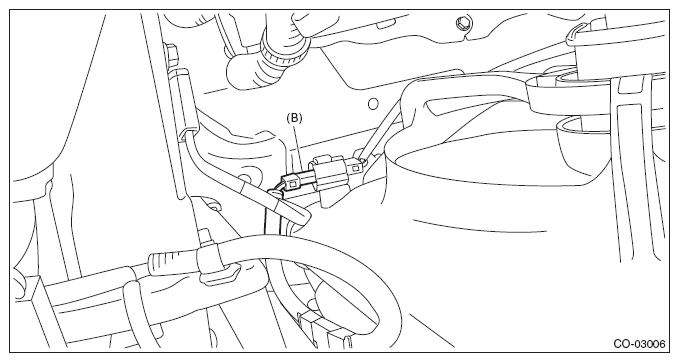

Fig 5: Identifying Sub Fan Motor Assembly Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the reservoir tank. Refer to INSTALLATION .
Lift up the vehicle.

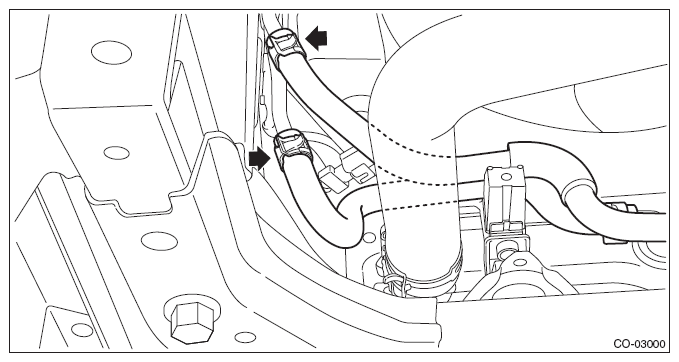

Connect the CVTF radiator hose to the CVTF pipe. (CVT model)
NOTE: Use a new CVTF radiator hose.

Fig 6: Connecting CVTF Radiator Hose To CVTF Pipe
Courtesy of SUBARU OF AMERICA, INC.

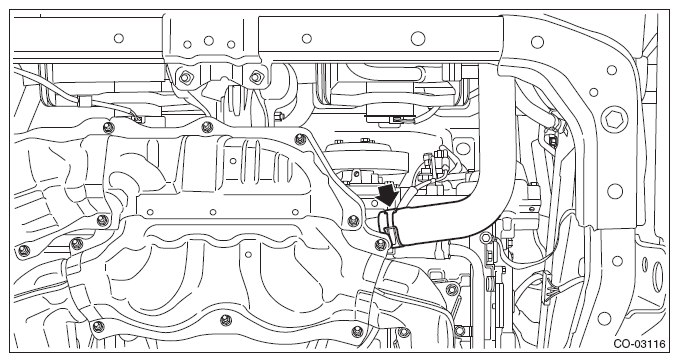

Connect the radiator outlet hose.

Fig 7: Locating Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Refer to INSTALLATION .
Lower the vehicle.

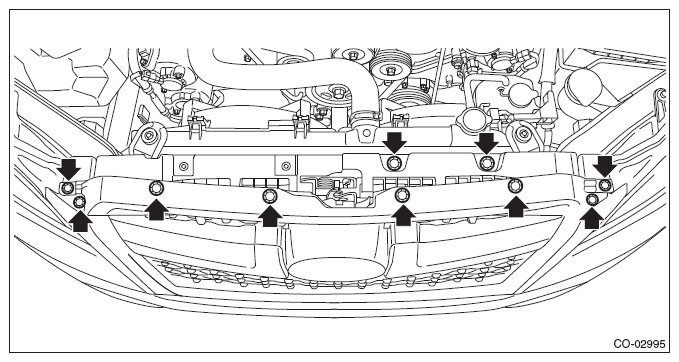

Attach the bracket - grille.

Fig 8: Attaching Bracket - Grille
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct. Refer to INSTALLATION .
Install the V-belt cover.
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

Fig 9: Locating V-Belt Cover
Courtesy of SUBARU OF AMERICA, INC.
Connect the battery ground terminal.

Fig 10: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Fill engine coolant. Refer to FILLING OF ENGINE COOLANT .
