Air Cleaner Element: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct. Refer to REMOVAL .
Disconnect the power steering oil pressure hose (suction hose) from the clip on the side of air cleaner case (rear).

Fig 2: Identifying Power Steering Oil Pressure Hose, Clip And Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B).

Fig 3: Identifying Mass Air Flow And Intake Air Temperature Sensor Connector With Clip
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp (A) which connects the air cleaner case (rear) and air intake boot, and then remove the clip (B) from the air cleaner case (front).

Fig 4: Identifying Air Cleaner Case Clamp And Clip
Courtesy of SUBARU OF AMERICA, INC.

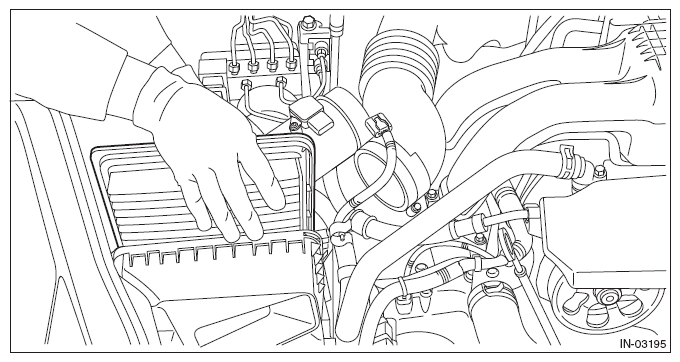

Remove the air cleaner case (rear) and air cleaner element.

Fig 5: Removing Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
