Main Relay: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G08579605Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the back panel - pocket. Refer to REMOVAL .
  3. Remove the main relay from the relay block on the back side of the glove box.

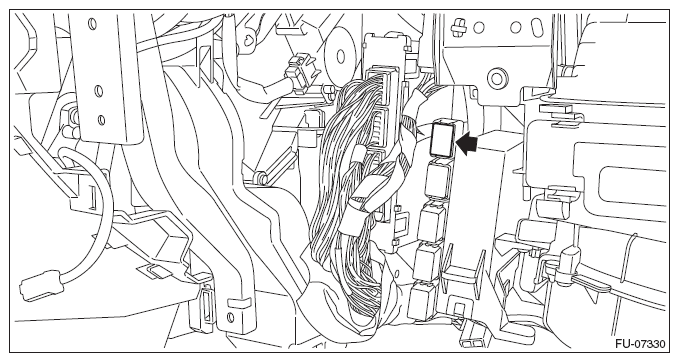

    Fig 2: Locating Main Relay
    G08579743Courtesy of SUBARU OF AMERICA, INC.
