Tumble Generator Valve Actuator: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from tumble generator valve assembly, and remove the tumble generator valve actuator.
- LH side

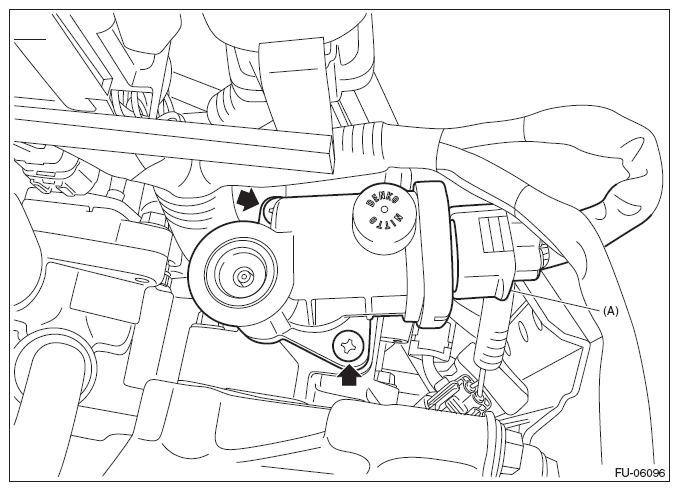

  Fig 2: Identifying Tumble Generator Valve Assembly Connector (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- RH side

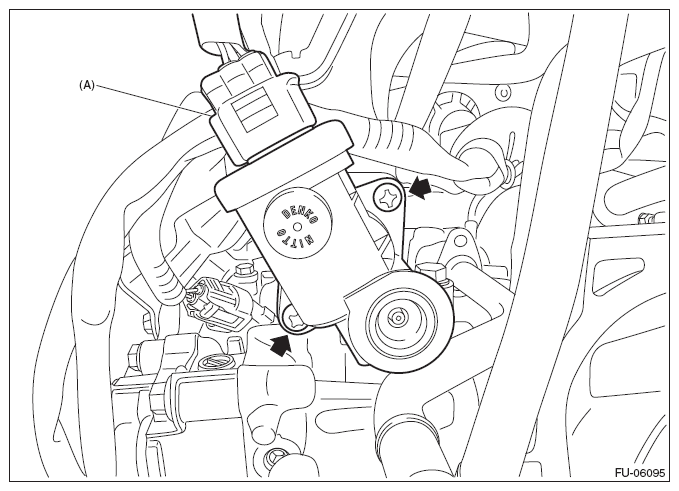

  Fig 3: Identifying Tumble Generator Valve Assembly Connector (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
