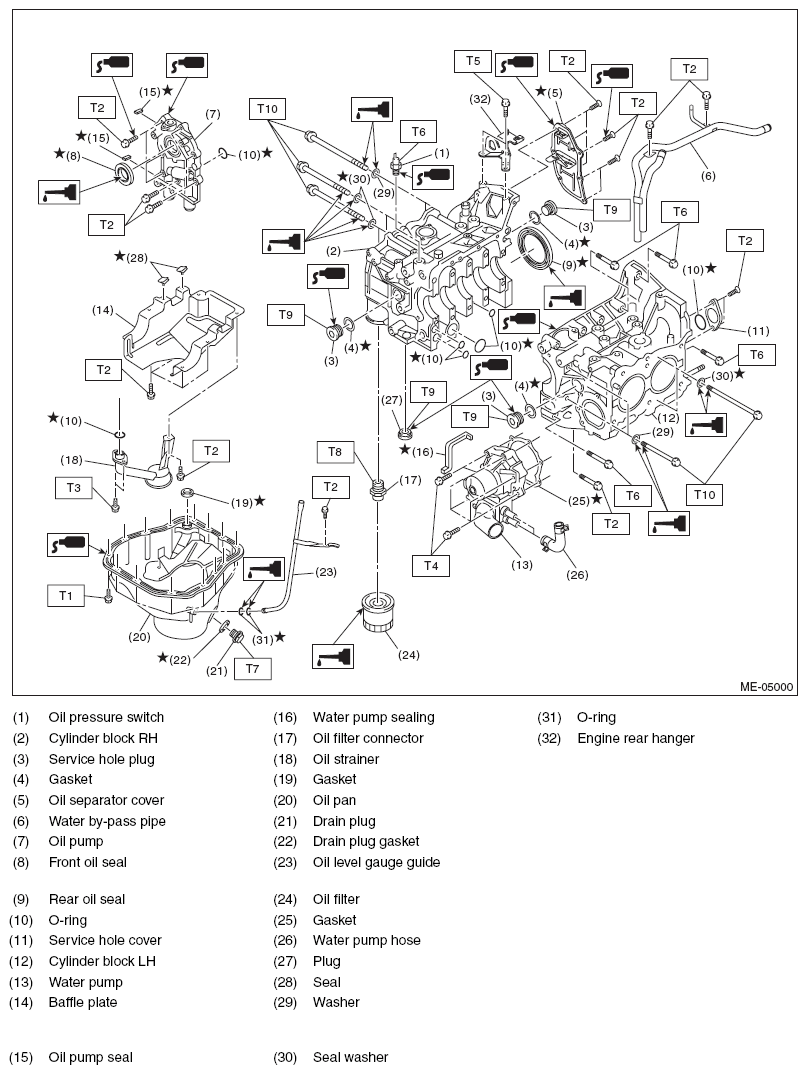

Cylinder Block
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5 (0.5, 3.7)
T2: 6.4 (0.7, 4.7)
T3: 10 (1.0, 7.4)
T4: First 12 (1.2, 8.9) Second 12 (1.2, 8.9)
T5: 16 (1.6, 11.8)
T6: 25 (2.5, 18.4)
T7: 44 (4.5, 32.5)
T8: 45 (4.6, 33.2)
T9: 70 (7.1, 51.6)
T10: < Refer to INSTALLATION , Cylinder Block. >
