Components With Torque Specifications

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

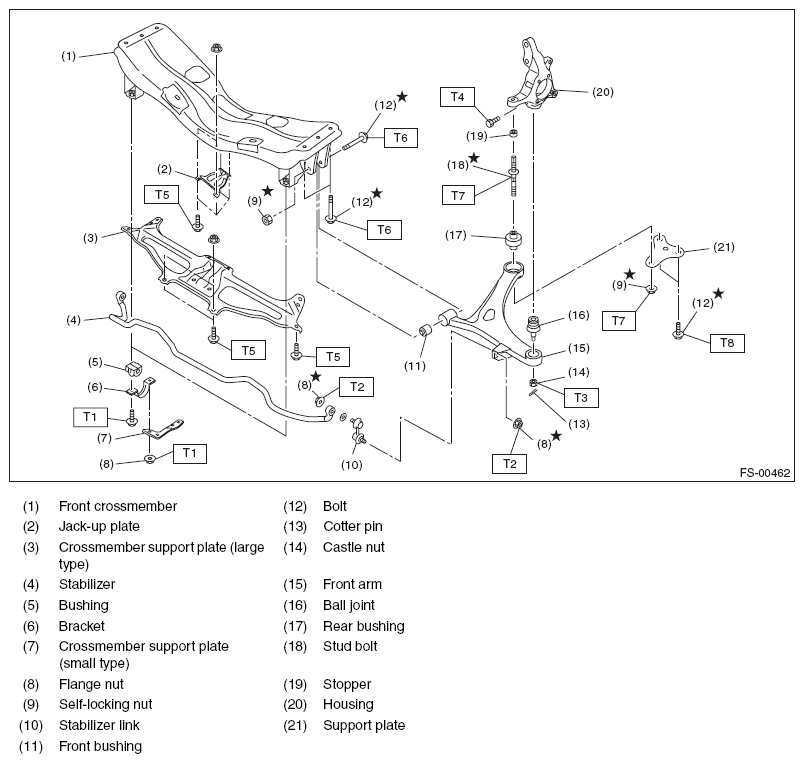

Fig 1: Identifying Front Suspension And Related Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.55, 18.4)

T2: 38 (3.87, 28.0)

T3: 39 (3.98, 28.8)

T4: 50 (5.10, 36.9)

T5: 60 (6.12, 44.3)

T6: 95 (9.69, 70.1)

T7: 110 (11.22, 81.1)

T8: 150 (15.30, 110.6)

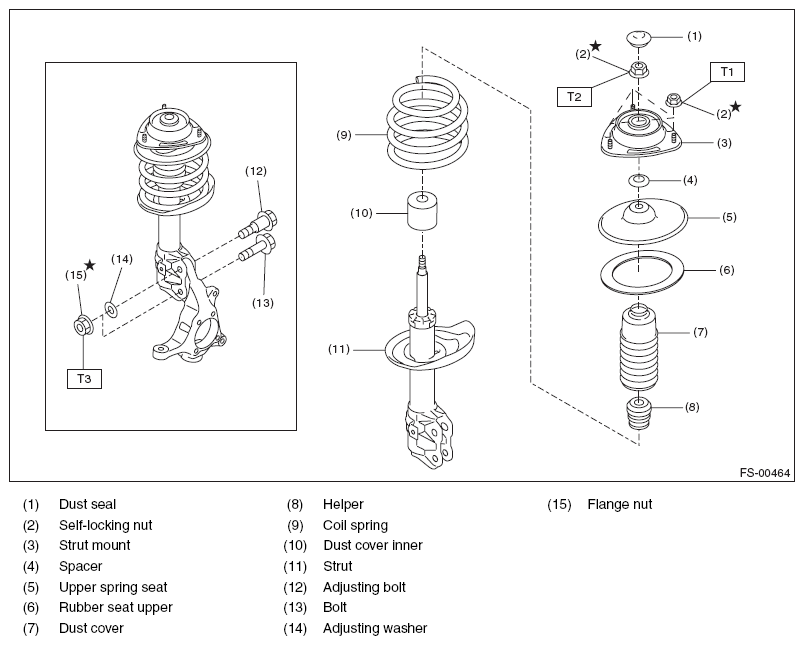

Fig 2: Identifying Front Suspension And Related Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.04, 14.8)

T2: 55 (5.61, 40.6)

T3: 155 (15.81, 114.3)
