Wheel Arch Height
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- Park the vehicle on a level surface.
- Empty the vehicle so that it is at "curb weight". (Empty the luggage compartment, load the spare tire, jack and service tools, and fill up the fuel tank.)
- Set the steering wheel in a straight-ahead position, and stabilize the suspension by moving the vehicle in a straight line for 5 m (16 ft) or more.

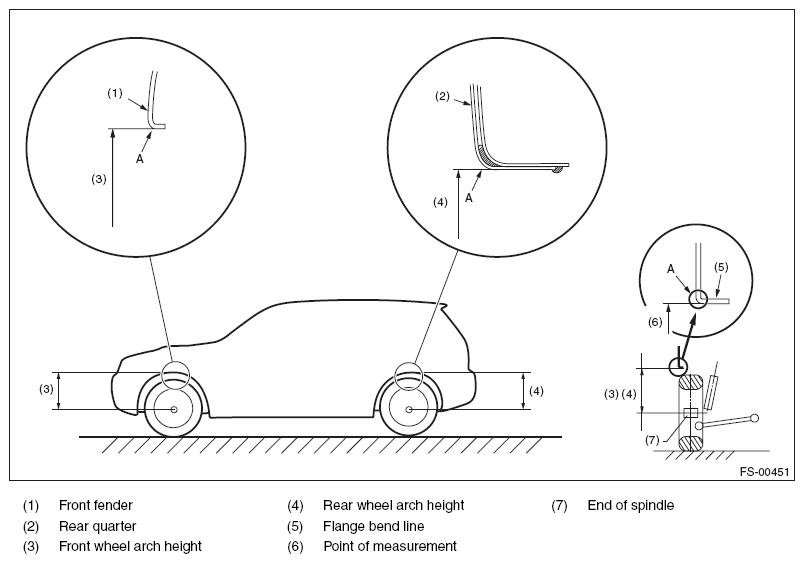

- Suspend a thread from the wheel arch (point "A" in the figure below) and affix at a position directly above the center of wheel.
- Measure the distance between the point "A" and the center of wheel.
| Wheel arch height specification mm (in) (Tolerance: +12 mm-24 mm (+0.47 in-0.94 in )) | |
|---|---|
| Model | All models |
| Front | 445 (17.5) |
| Rear | 448 (17.6) |
