Components With Torque Specifications: Notes

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

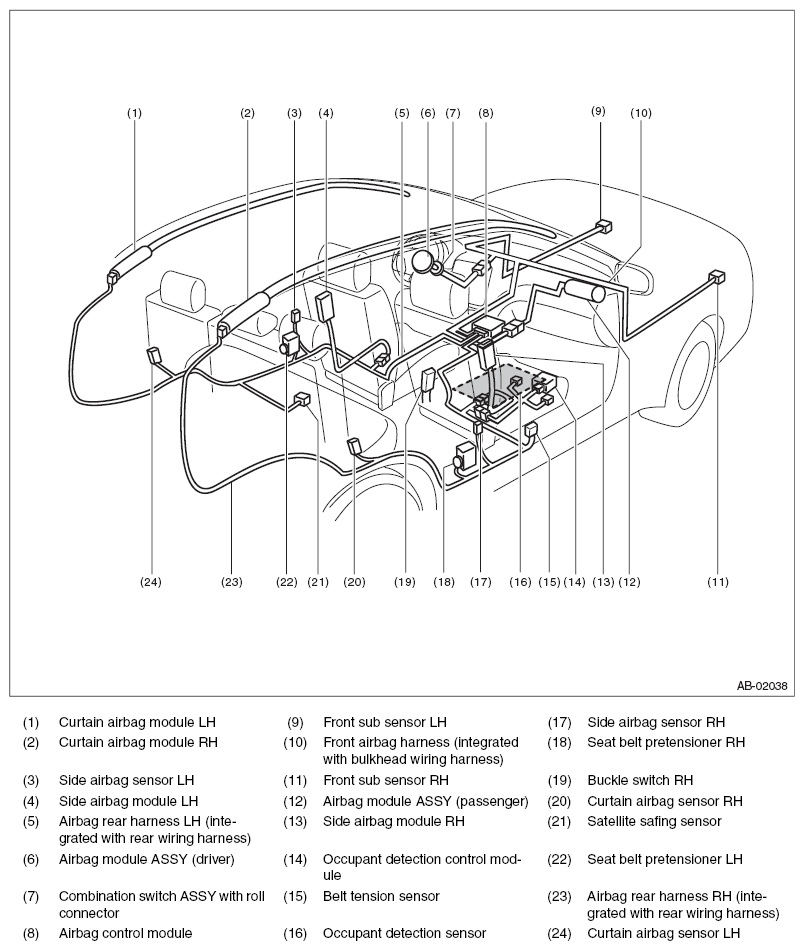

Fig 1: Identifying Airbag System And Related Components

Courtesy of SUBARU OF AMERICA, INC.
