Engine Oil: Replacement

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the engine oil is spilled over exhaust pipe or the under cover, wipe it off with cloth to avoid emitting smoke or causing a fire.

Open the engine oil filler cap for quick draining of engine oil.
Lift up the vehicle.
Drain engine oil by loosening the engine oil drain plug.
NOTE:
Prepare the container for draining of engine oil.

Fig 1: Identifying Engine Oil Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Tighten the engine oil drain plug after draining engine oil.
NOTE:
Use a new drain plug gasket.

Tightening torque:

44 N.m (4.5 kgf-m, 32.5 ft-lb)

Fig 2: Identifying Engine Oil Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Select engine oil of adequate quality and viscosity and fill it through the oil filler duct to the "F" line on the oil level gauge. Make sure that the vehicle is parked on a level surface when checking oil level.
Recommended oil:

Refer to "SPECIFICATION" for recommended oil. < Refer to SPECIFICATION , General Description. >

Engine oil capacity:

Refer to "SPECIFICATION" for engine oil capacity. < Refer to SPECIFICATION , General Description. >
Close the engine oil filler cap.
Start the engine to circulate the oil in engine.
After stopping the engine, recheck the oil level. If necessary, add engine oil up to the "F" line on oil level gauge.

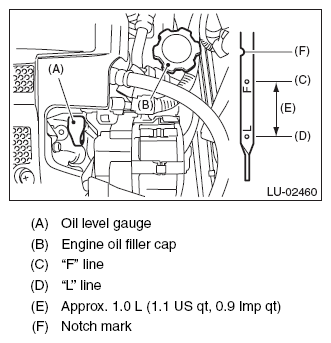

Fig 3: Identifying Engine Oil Filler Cap, Oil Level Line And Gauge
Courtesy of SUBARU OF AMERICA, INC.
