Oil Pipe

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

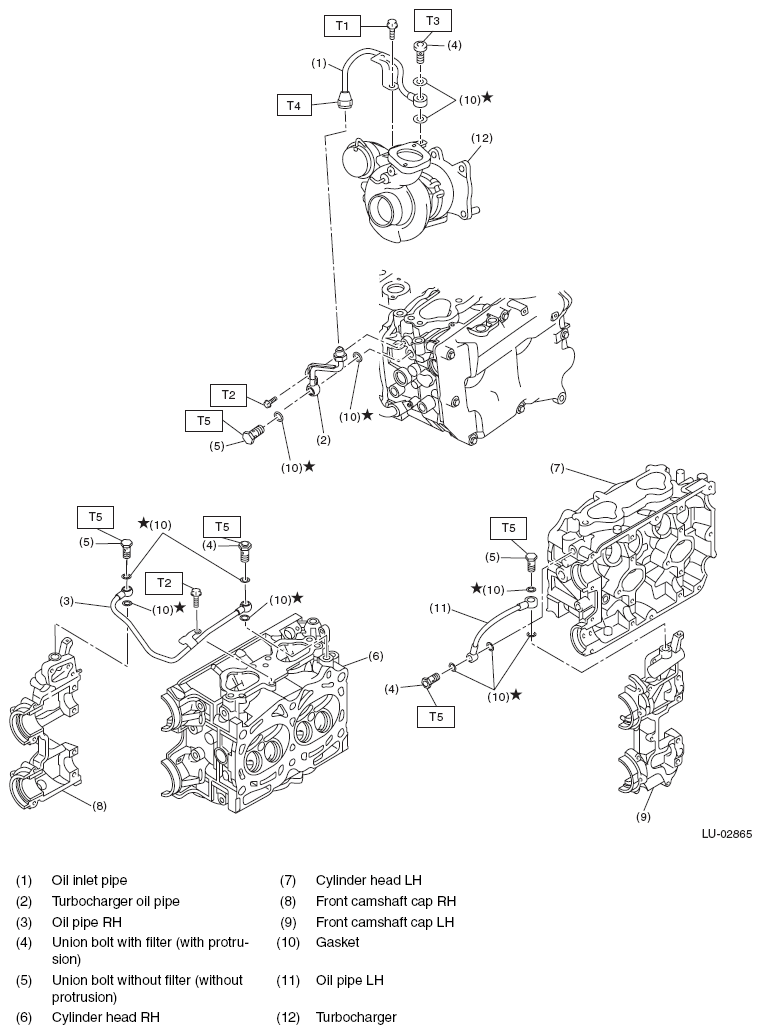

Fig 1: Oil Pipe Replacement Components With Torque Specifications
G08571220Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 6.4 (0.7, 4.7)

T3: 16 (1.6, 11.8)

LH T4: 20 (2.0, 14.8)

T5: 29 (3.0, 21.4)
