Reservoir Tank: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain fluid from the reservoir tank.
  2. Disconnect the hose from reservoir tank.
    CAUTION: To prevent foreign matter from entering the hose and pipe, cover the open ends of them with clean cloth.

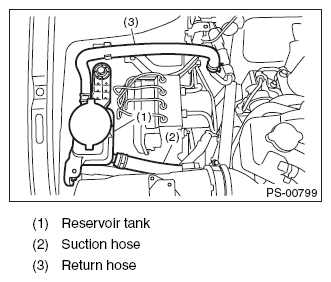

    Fig 1: Identifying Reservoir Tank, Suction Hose And Return Hose
    G08565865Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the reservoir tank from the body.
