Components With Torque Specifications

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

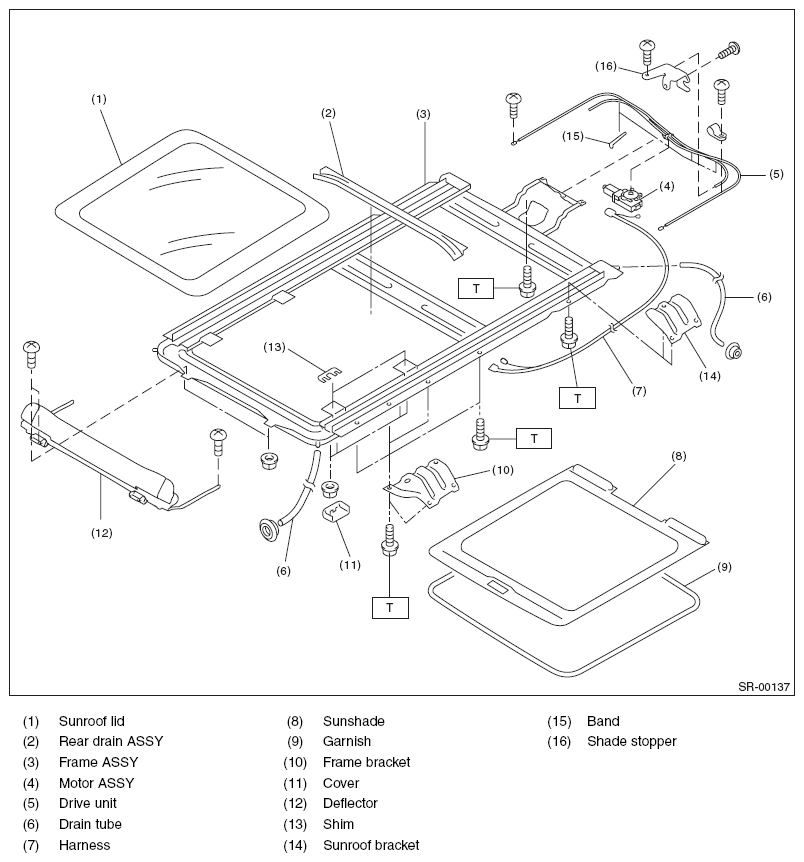

Fig 1: Sunroof/T-Top/Convertible Top Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque : N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
