Section 12 (Starting System & Charging System (H6DO)): Starter: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

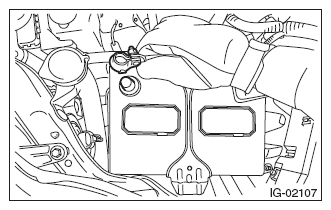

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp (A) which connects the air intake boot assembly.
Loosen the bolt (B) which secures the air intake boot assembly to the collector cover bracket.

Fig 2: Identifying Air Intake Boot Assembly Clamp And Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot assembly, and move it to the left side wheel apron.

Fig 3: Identifying Air Intake Boot Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (B) and terminal (A) from starter.

Fig 4: Identifying Starter Connector And Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the starter from transmission.

Fig 5: Identifying Starter Connector And Terminal Mounting Nut And Bolt
Courtesy of SUBARU OF AMERICA, INC.
