Air Intake Boot: Installation

WARNING: This page is about a different variant/trim than selected.

Install the air intake boot assembly and connect the blow-by hose.
Tighten the clamp (A) which connects the air intake boot assembly and throttle body.
Tighten the bolt (B) which secures the air intake boot assembly and collector cover bracket.
Tightening torque:

Clamp (A)

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Bolt (B)

6.5 N.m (0.7 kgf-m, 4.8 ft-lb)

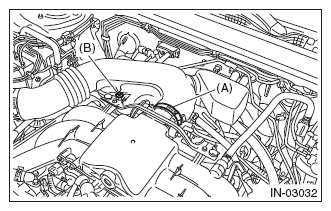

Fig 1: Identifying Air Intake Boot Assembly And Throttle Body Connecting Clamp
Courtesy of SUBARU OF AMERICA, INC.
Tighten the clamp which connects the air intake boot assembly and air cleaner case (rear).
Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Fig 2: Locating Clamp Connecting Air Intake Boot Assembly And Air Cleaner Case (Rear)
Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover.
