Window Washer

Check that the window washer system injects washer fluid to the specified area of the windshield and rear window glass shown in the figure.

Front injection position:

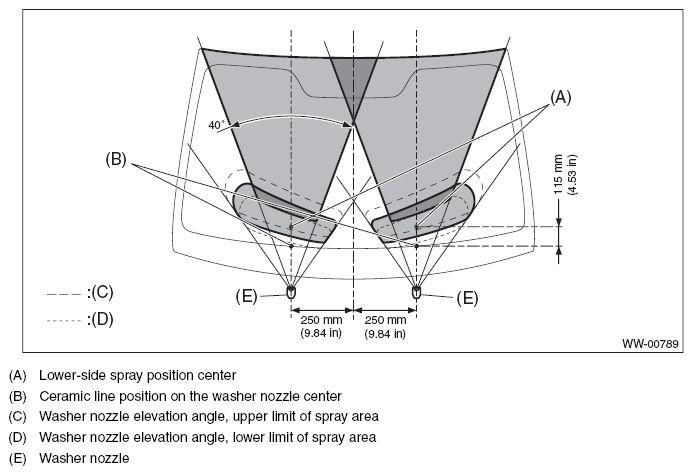

Fig 1: Identifying Windshield And Rear Window Glass Area (Front Injection Position)

Courtesy of SUBARU OF AMERICA, INC.

Rear injection position:

Fig 2: Identifying Windshield And Rear Window Glass Area (Rear Injection Position)

Courtesy of SUBARU OF AMERICA, INC.
