General Description
›
Components With Torque Specifications
›
Notes
Components With Torque Specifications: Notes

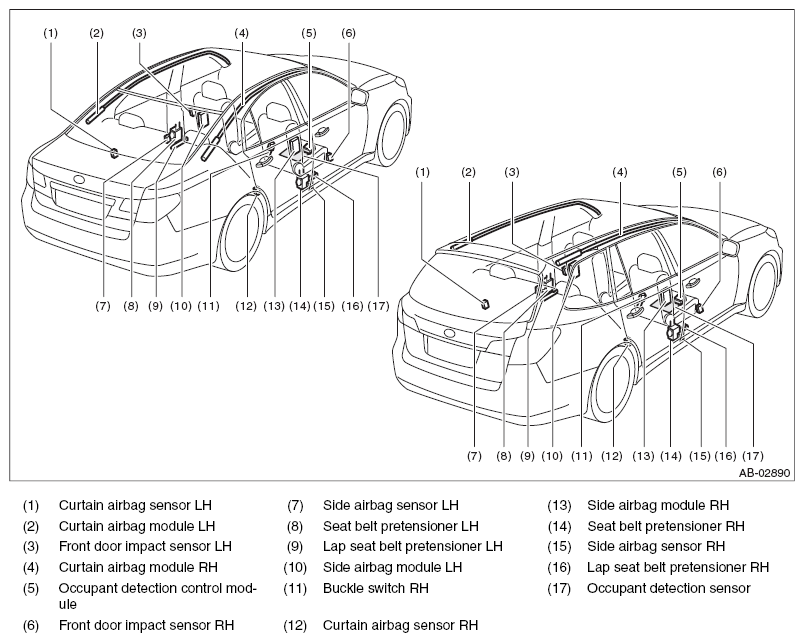

Fig 1: Identifying Airbag Module Assembly Components (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

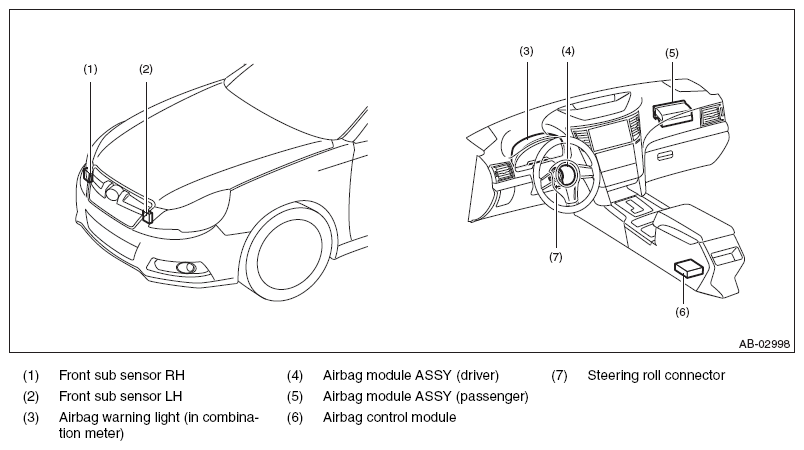

Fig 2: Identifying Airbag Module Assembly Components (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
