Oil Pump

• H4 model

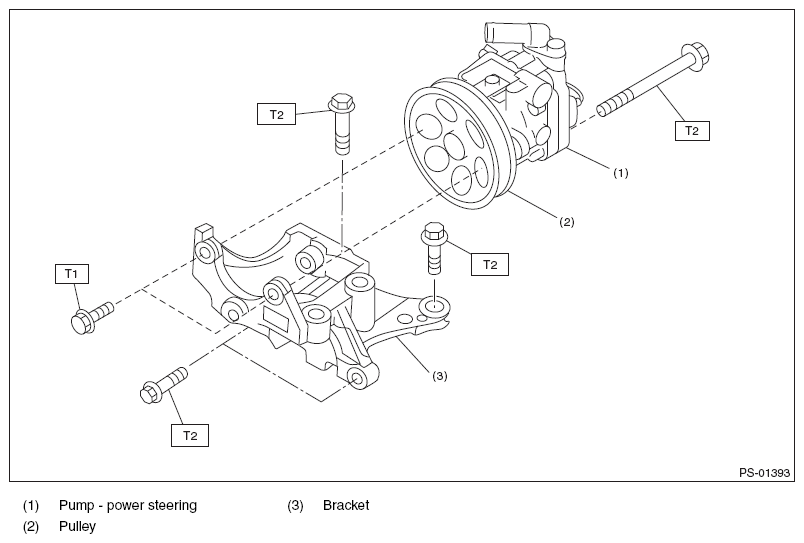

  Fig 1: Oil Pump Replacement Components With Torque Specifications (H4 Model)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.63, 11.8)

T2: 36 (3.67, 26.6)

• H6 model

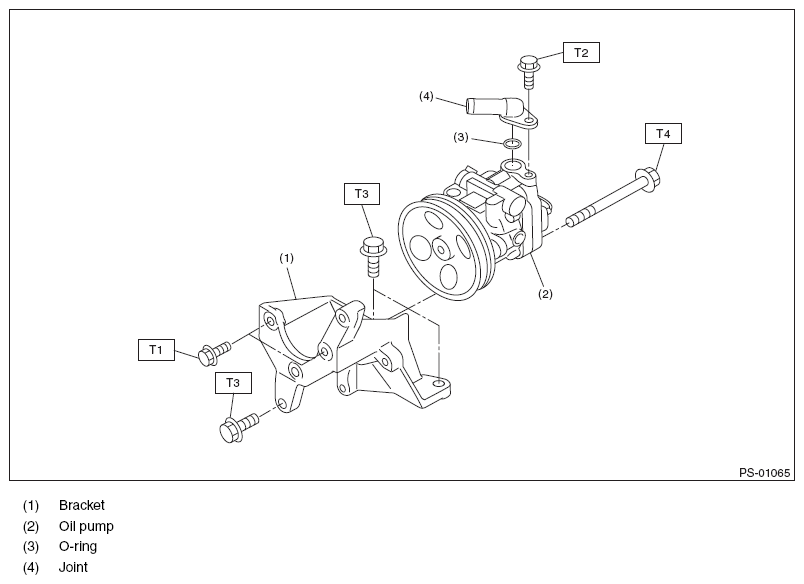

  Fig 2: Oil Pump Replacement Components With Torque Specifications (H6 Model)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.63, 11.8)

T2: 21 (2.14, 15.5)

T3: 33 (3.36, 24.3)

T4: 36 (3.67, 26.6)
