Transfer Driven Gear: Removal

Remove the manual transmission assembly from the vehicle. Refer to REMOVAL .
Remove the back-up light switch and the neutral position switch. Refer to REMOVAL .
Remove the transfer case together with the extension case assembly. Refer to REMOVAL .
Remove the extension case assembly.
Remove the transfer driven gear and center differential as a unit.

Fig 1: Identifying Transfer Driven Gear And Center Differential
Courtesy of SUBARU OF AMERICA, INC.

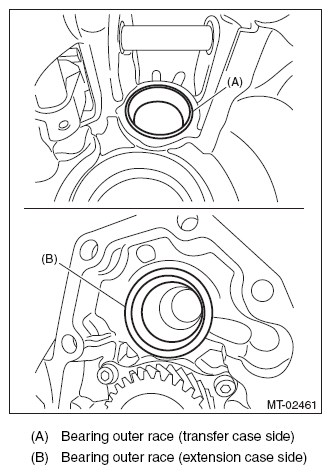

Remove the bearing outer race from the extension case and transfer case.

Fig 2: Identifying Bearing Outer Race
Courtesy of SUBARU OF AMERICA, INC.
