Continuously Variable Transaxle (CVT) (Diagnostics): Electrical Component Location: Location: Sensor

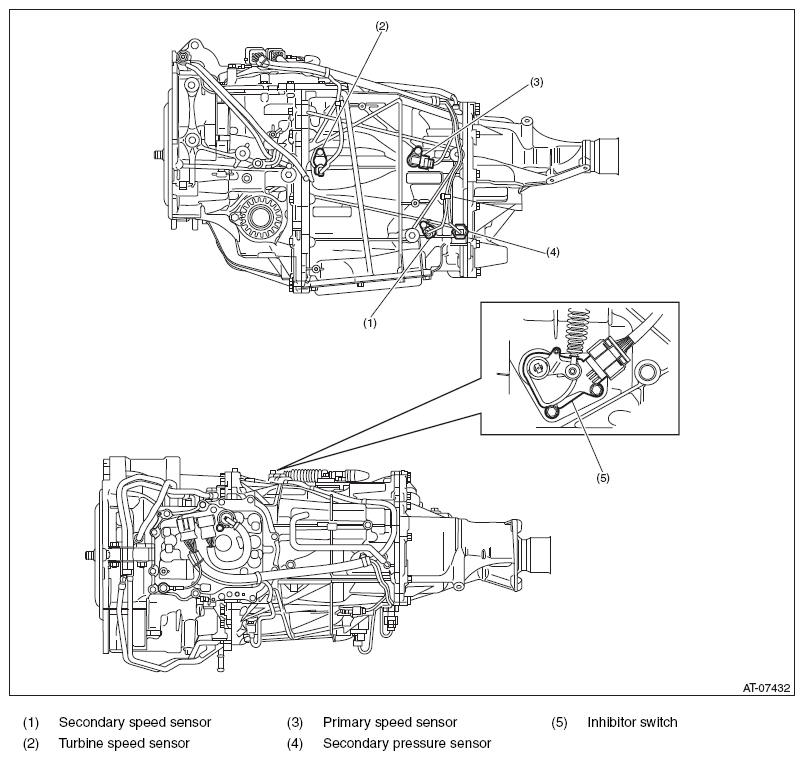

Fig 1: Sensor Electrical Component Location
G08579084Courtesy of SUBARU OF AMERICA, INC.
