Diagnostic Trouble Code (DTC) Detecting Criteria (H6DO)
›
Diagnostic Trouble Code (DTC) Detecting Criteria
›
DTC P060B Internal Control Module A/D Processing Performance
›
Component Description
Component Description

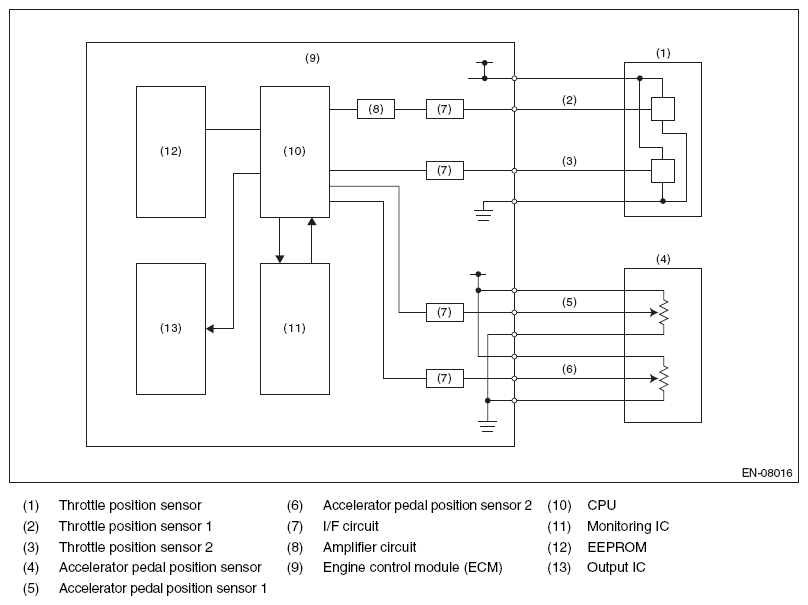

Fig 1: Internal Control Module A/D Processing Performance - Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
