Engine Controls (Diagnostics) (H6DO)
›
Drive Cycle
›
Procedure
›
Drive Cycle C
›
Diagnostic procedure
Diagnostic procedure
Drive according to the drive pattern described below.

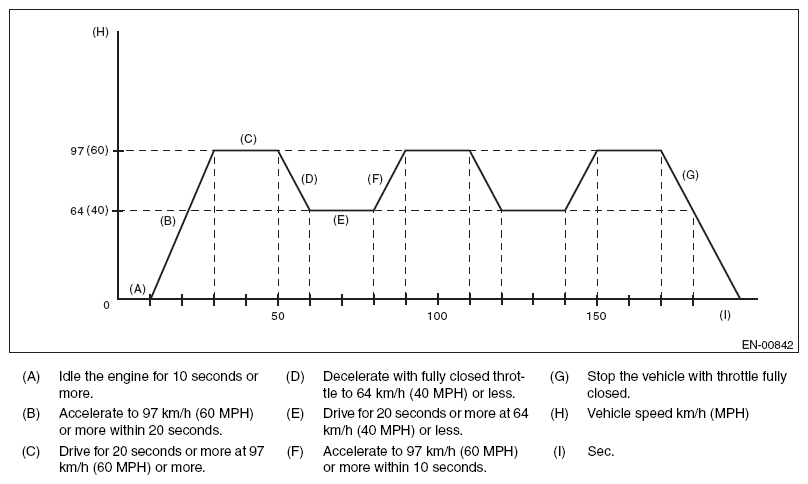

Fig 1: Vehicle Driving Pattern (Drive Cycle C)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
